liftBox lifting stations

The liftBOX lifting stations are designed to collect rainwater, wastewater or sewage and transfer it to a higher level, which would otherwise be unreachable due to the distance or by gravity, delivering it to the sewage line or the treatment plant.

The lifting stations consist of a polyethylene tank, an internal pumping system controlled by floats or level probes and an electrical panel.

They may be equipped with a pre-assembled valve operating chamber separated from the wastewater collection chamber for convenient and hygienic maintenance.

The liftBOX lifting stations, which are designed for underground installation, have a volume of 1000 to 19000 litres and can be connected to systems with pressure pipes of size from DN50 to DN150.

Range

lifting stations Zenit liftBOX S

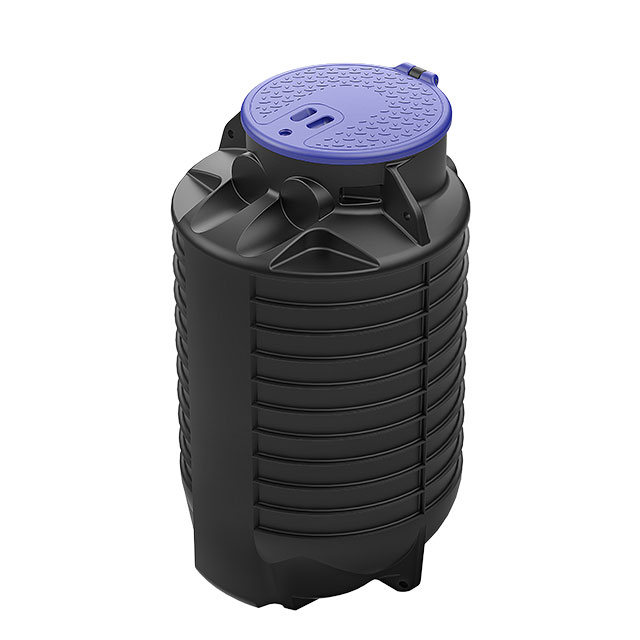

liftBOX S

LIFTING STATIONS

Civil dwellings and residential buildings

Product range characteristics

  • Capacity [l]
    650 ÷ 1450
  • Number of pumps
    1/2
  • Number of DAC
    1/2
  • Delivery
    DN 50
  • Inlet
    DN 125-160
  • Dimensions
    Ø1000 / h 1200 ÷ 2300

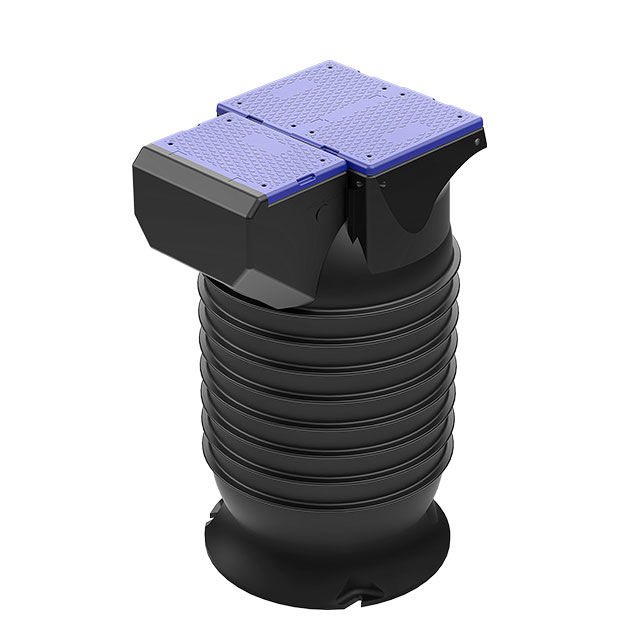

lifting stations Zenit liftBOX M

liftBOX M

LIFTING STATIONS

Commercial activities and industrial plants

Product range characteristics

  • Capacity [l]
    2200 ÷ 4050
  • Number of pumps
    1/2
  • Number of DAC
    1/2
  • Delivery
    DN 50/65/80
  • Inlet
    DN 125/160/200/250
  • Dimensions
    Ø1250 / h 2300 ÷ 4100

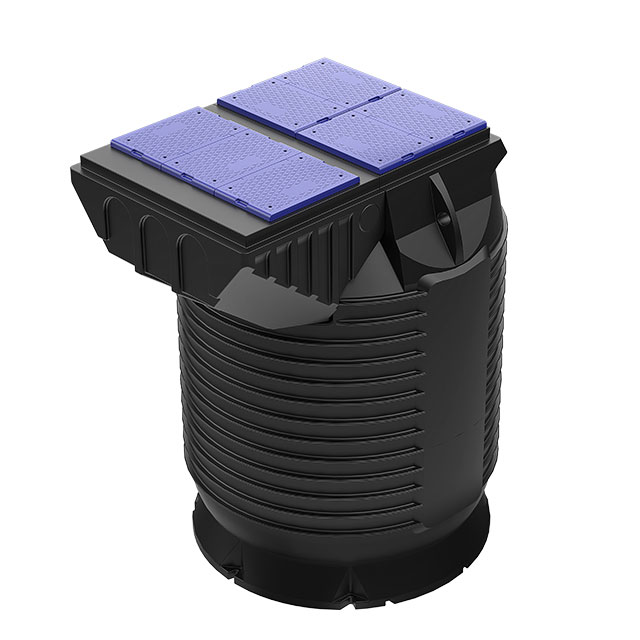

lifting stations Zenit liftBOX L

liftBOX L

LIFTING STATIONS

Commercial activities and industrial plants

Product range characteristics

  • Capacity [l]
    5800 ÷ 19000
  • Number of pumps
    2
  • Number of DAC
    2
  • Delivery
    DN 50/80/100/150
  • Inlet
    DN 250/315/400
  • Dimensions
    Ø2280 / h 2070 ÷ 5670

Details

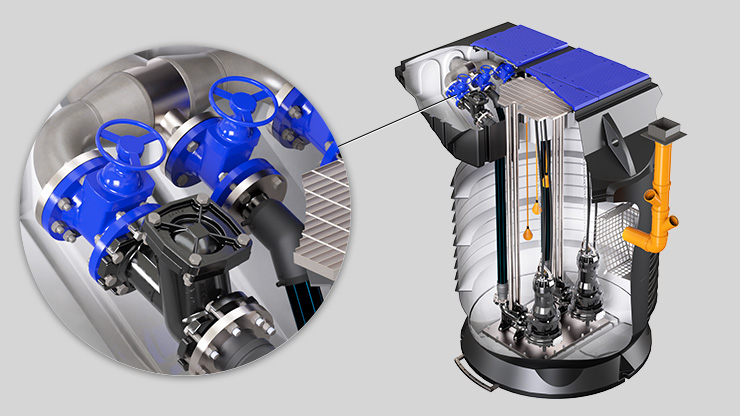

separate valve lifting station Zenit liftBOX

Each lifting station can be equipped with a valve chamber with an independent, snap-closing cover.
This allows access to the valves without opening the main tank.
For each pressure line, the valve chamber comprises a cast-iron knife gate valve complete with handwheel control and a check valve with cast-iron body and full free passage NBR rubber sinking ball.
On liftBOX-L versions, there is an additional knife gate valve for emptying the main manifold in case of maintenance work on the flow line.

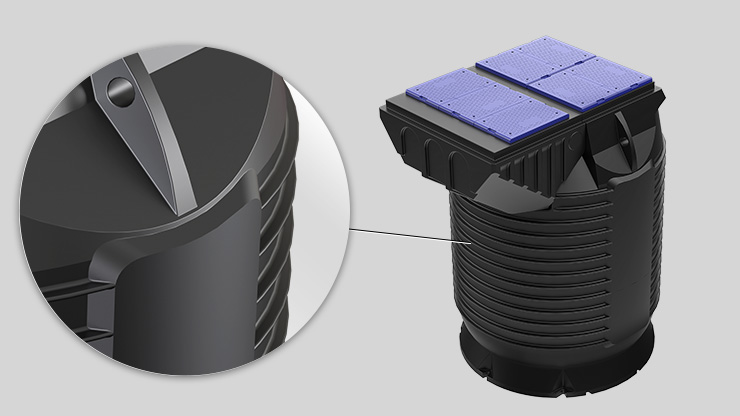

tank robust lifting station Zenit liftBOX

Tank made of thick polyethylene with horizontal reinforcing ribs.

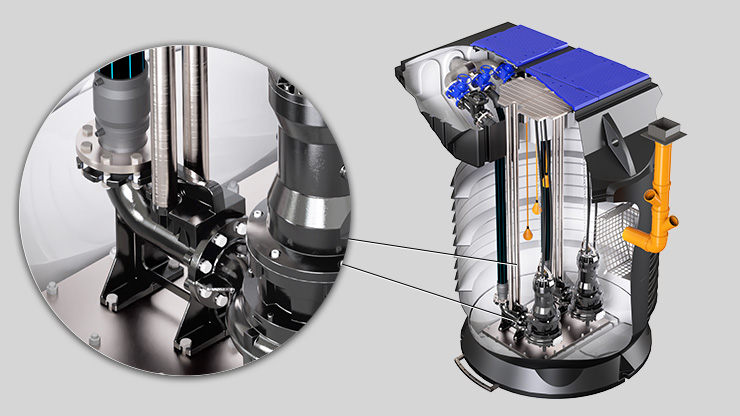

coupling device guide pipes lifting station Zenit liftBOX
Stainless steel guide pipes.
The bottom coupling device (DAC) is designed to allow the pump to be replaced quickly, even when the tank is full.

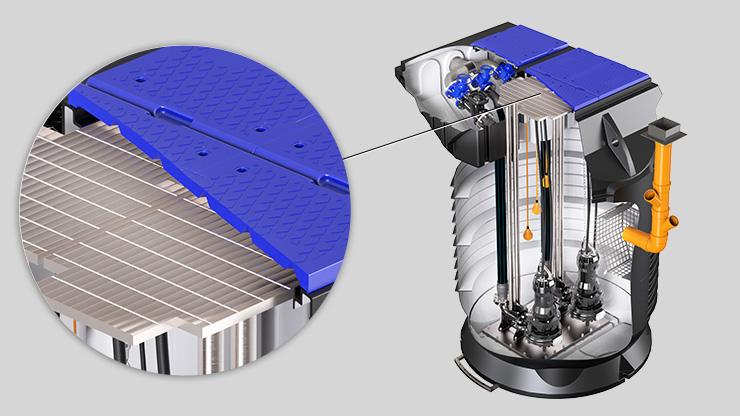

Fall protection grid lifting station Zenit liftBOX

Fall protection system with metal grating, available in galvanised steel or stainless steel. [optional]

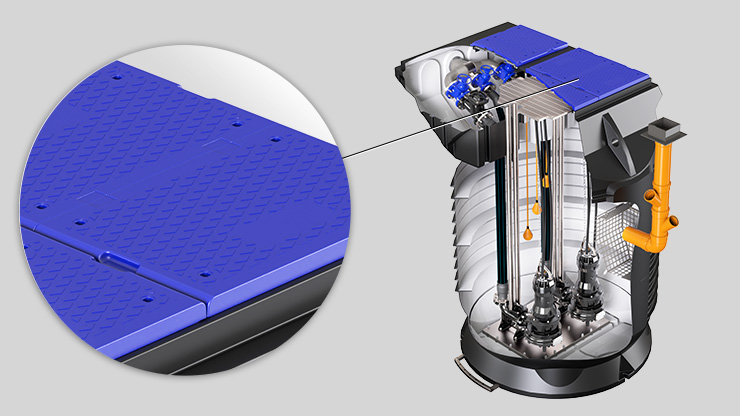

covers lifting station Zenit liftBOX

Pedestrian cover with pressure closure
Dimensions 770x550 mm each
Hermetically sealed with a gasket

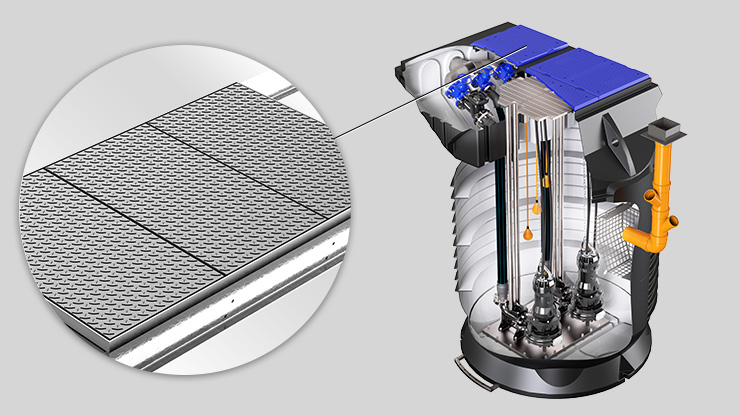

manhole covers lifting station Zenit liftBOX

Rugged manhole covers with anti-odour seal and key lock.
Galvanised steel support frame for anchoring to reinforced concrete slab class B125, C25 and D400.
[optional]

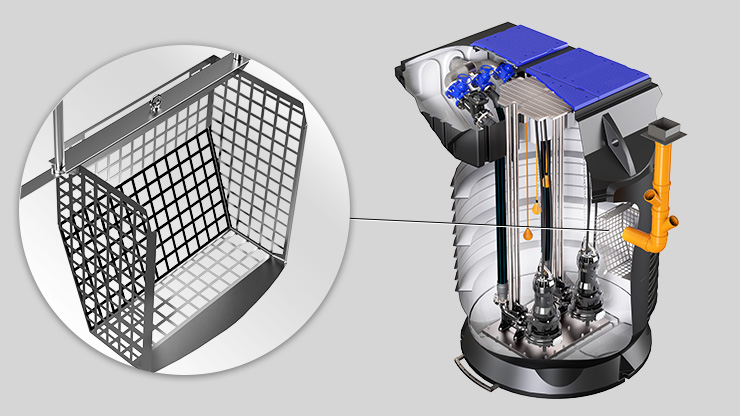

Inlet effluent filter basket lifting station Zenit liftBOX

Stainless steel basket for coarse screening of inlet effluent.
This avoids the potential overloading of bulky material inside the tank that could cause clogging of the pipes, blockage of the pumps or interfere with the operation of the floats.
The stainless steel guides allow the quick and easy retrieval of the basket from the surface for emptying and cleaning.
[optional]

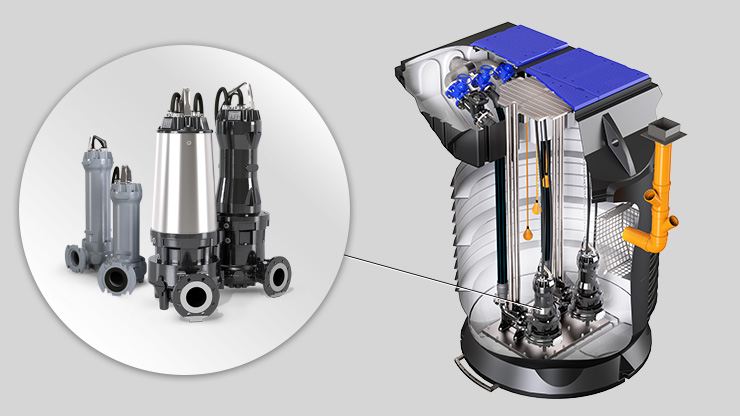

pumps lifting station Zenit liftBOX

Lifting station consisting of 1 or 2 robust and reliable cast-iron submersible pumps.
Configurations with different types of hydraulics are possible, according to the nature of the liquid and the use for which they are intended. (model L only available in 2-pump version)

Want to configure your product? Explore the Zeno Navigator Suite

Specifications

Rotation-moulded polyethylene tank
Constant, thick walls with horizontal reinforcing ribs
Contoured bottom to prevent stagnation and facilitate positioning of the pump
Rated volume from 1000 to 19000 litres
Inlet pipe diameter from DN 125 to DN 400
Delivery pipe diameter from DN 50 to DN 150
Optional inlet effluent filter basket (models M and L only)
Valve chamber separate from tank compartment (models M and L only)

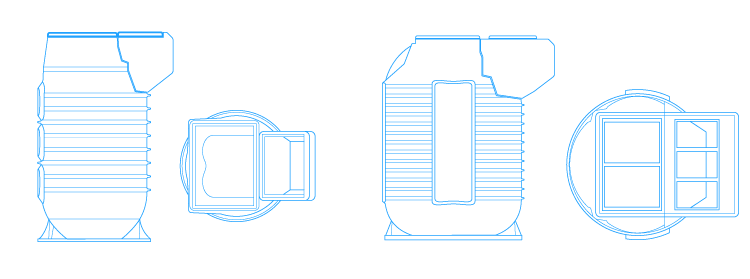

zenit lifting station liftbox dimensions
  A [mm] B C [mm]
liftBOX S 1700 1000 600
liftBOX M 2300 ÷ 4100 1250 1500
liftbox L 2070 ÷ 5670 2280 2780
Zenit DAC V 32 50 couplers

DAC-V 32÷50

Zenit DAC V 65 350 couplers

DAC-V 65÷350

Zenit DAC H couplers

DAC-H

Zenit SRP knife gate valve

SRP

Zenit VAP 32 50 ball check valve

VAP 32÷50

Zenit VAP 65 300 ball check valve

VAP 65÷300

Zenit MAC 3 float switch

MAC 3

Zenit LEVEL float switch

LEVEL

Zenit domestic and civil electromechanical and electronic control panels

Standard electronic

zenit full service electronic control panels

Full service electronic

zenit standard electromechanical control panels

Standard electromechanical

zenit full service electromechanical control panels

Full service electromechanical
