E Series electric submersible pumps

Lightweight, reliable cast iron submersible pumps. Versions are available with two different hydraulics:

  • DRENO (DRE) with multi-channel open impeller for clear or slightly soiled wastewaters.
  • DRAGA (DGE), with vortex impeller and large free passage for wastewaters with heavy soil.

The compact size and horizontal and vertical discharge allow any installation, even in existing plants or small pits.
Every model undergoes pressurised testing to guarantee perfect assembly and operation of the gaskets, cable gland and mechanical seals.

E Series models are suitable mainly for permanent installations yet, thanks to their convenience and ease of handling, they can also be used in emergencies for pumping-out flooding premises or for temporary installations for pumping from wells and tanks.

Intended mainly for domestic use, these pumps are recommended for pressurising small plants, for garden sprinkler systems, for supplying fountains, for emptying swimming-pools or tanks and for pumping out flooded cellars or garages.

Range

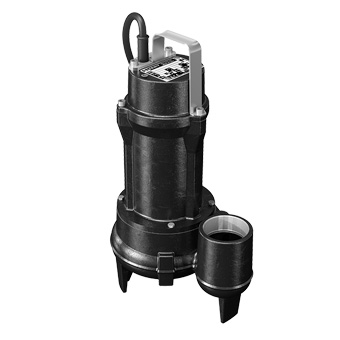

Zenit E Series DGE electric submersible pump

DGE

DG [DRAGA]

  • Cast iron vortex impeller
  • Large free passage

  • Sewage
  • Soiled wastewaters with solids
  • Lifting stations in civil and residential plants
Zenit E Series DG electric submersible pump impeller

Product range characteristics

  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    50 Hz
  • Power
    0.37 ÷ 1.5 kW
  • Poles
    2
  • Vertical discharge
    GAS 1½" - GAS 2"
  • Horizontal discharge
    GAS 2" - DN50
  • Free passage
    max 50mm
  • Max flow rate
    714 l/min
  • Max head
    17.6 m
  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    60 Hz
  • Power
    0.37 ÷ 1.5 kW
  • Poles
    2
  • Vertical discharge
    GAS 1½" - GAS 2"
  • Horizontal discharge
    GAS 2" - DN50
  • Free passage
    max 50mm
  • Max flow rate
    714 l/min
  • Max head
    17.6 m

Installations

Free installation of E Series DGE
FREE installation
Permanent installation of E Series DGE
PERMANENT installation
Installation of E Series DGE with DAC E external coupler
Installation with EXTERNAL COUPLER
› DAC-E
Installation of E Series DGE with DAC V bottom coupler
Installation with BOTTOM COUPLER
› DAC-V
Installation of E series DGE with DAC H bottom coupler
Installation with BOTTOM COUPLER
› DAC-H

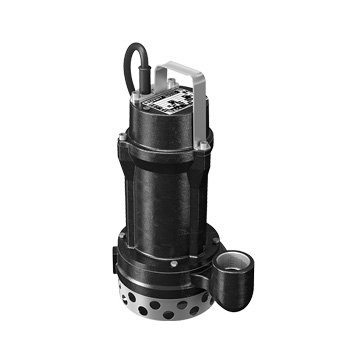

Zenit E Series DRE electric submersible pumps

DRE

DG [DRAGA]

  • Cast iron multi-channel open impeller
  • Stainless steel suction strainer

  • Clear or slightly soiled wastewaters
  • Strained, seepage and underground pump-out waters
  • Garden sprinklers and pumping from tanks
Zenit E Series DR electric submersible pump impeller

Product range characteristics

  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    50 Hz
  • Power
    0.37 ÷ 1.5 kW
  • Poles
    2
  • Vertical discharge
    GAS 1¼" - GAS 2"
  • Horizontal discharge
    GAS 2" - DN50
  • Free passage
    max 15mm
  • Max flow rate
    774 l/min
  • Max head
    18.4 m
  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    60 Hz
  • Power
    0.37 ÷ 1.5 kW
  • Poles
    2
  • Vertical discharge
    GAS 1¼" - GAS 2"
  • Horizontal discharge
    GAS 2" - DN50
  • Free passage
    max 15mm
  • Max flow rate
    774 l/min
  • Max head
    18.4 m

Installations

Free installation of E Series DGE
FREE installation
Permanent installation of E Series DRE
PERMANENT installation
Installation of E Series DRE with DAC E external coupler
Installation with EXTERNAL COUPLER
› DAC-E
Installation of E Series DRE with DAC V bottom coupler
Installation with BOTTOM COUPLER
› DAC-V
Installation of E Series DRE with DAC H bottom coupler
Installation with BOTTOM COUPLER
› DAC-H

Details

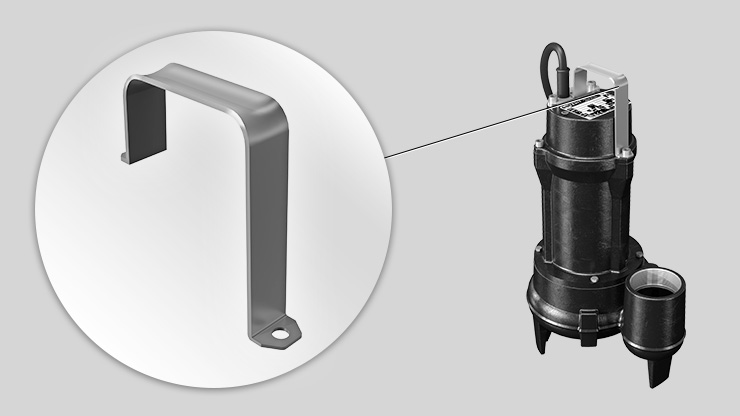

Zenit E Series electric submersible pump handle
Stainless steel lifting and carrying handle.

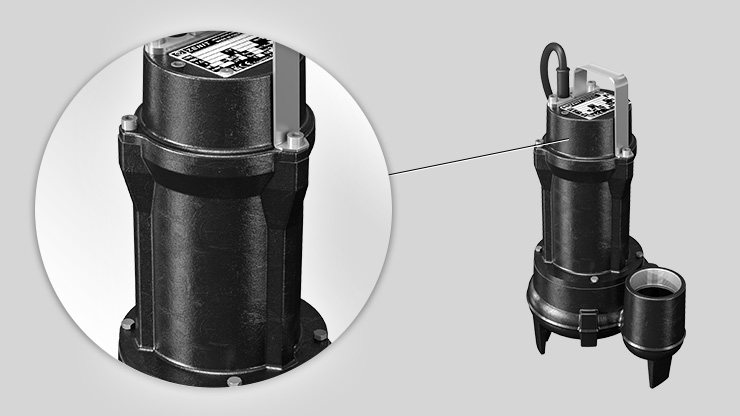

Zenit E Series electric submersible pump case
Robust cast iron construction.

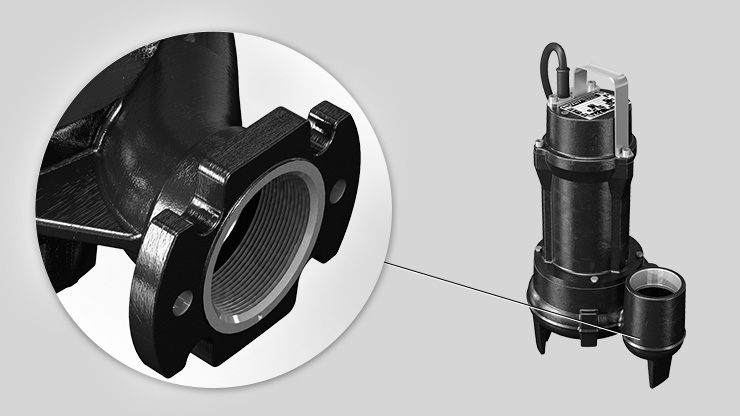

Zenit E Series electric submersible pump discharge
Wide range of models with vertical or horizontal discharge, with threaded or flanged connections for absolutely flexible installation.

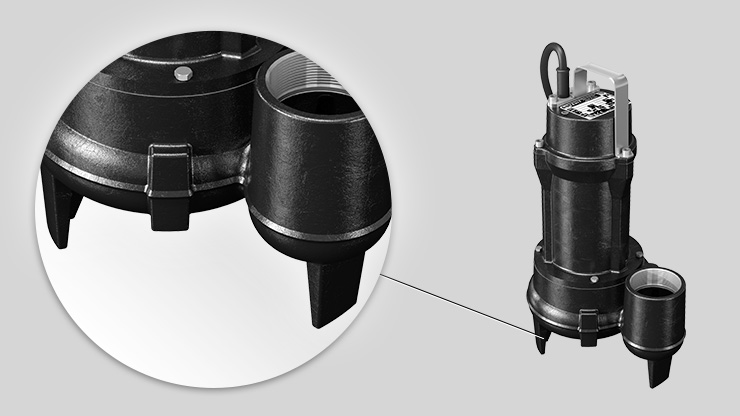

Zenit E Series electric submersible pump foot base supports
The rugged feet integral in the cast iron case give the pump stability and keep it at the correct suction height with no additional accessories required.

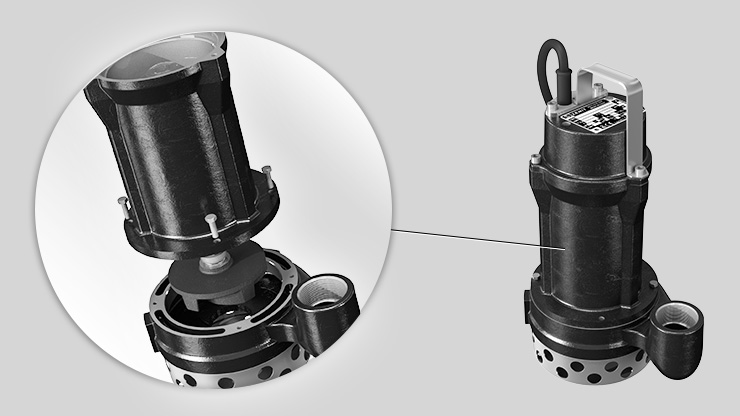

Zenit E Series electric submersible pump structure
Pump body dismantles for easy maintenance of internal components.

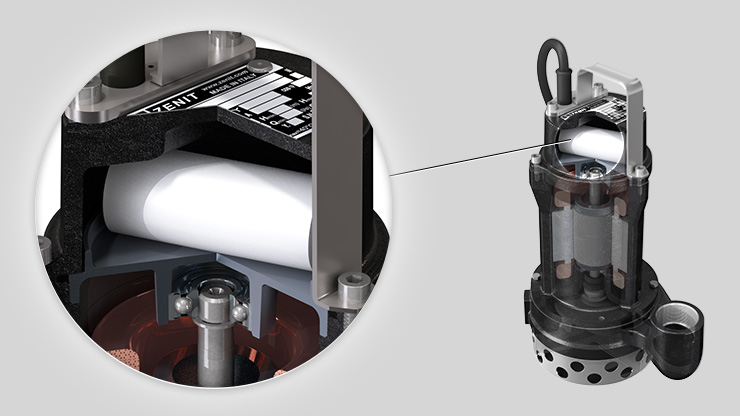

Zenit E Series electric submersible pump capacitor
Single-phase models have internal capacitor. Three-phase models are equipped with thermal protection and relay to safeguard the motor (optional).

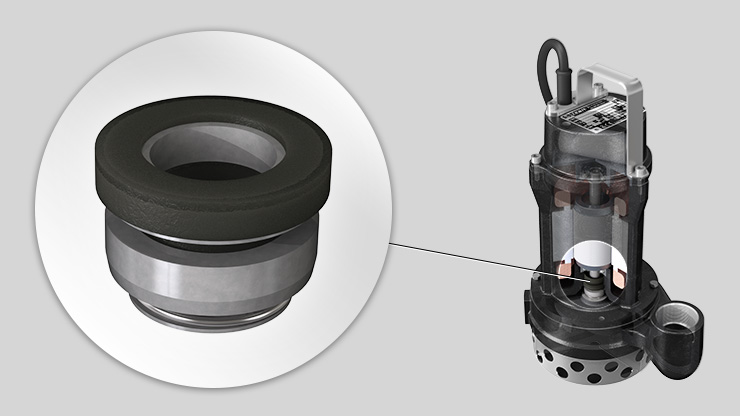

Zenit E Series electric submersible pump mechanical seals
One mechanical seal in silicon carbide (SiC) and one lip seal.

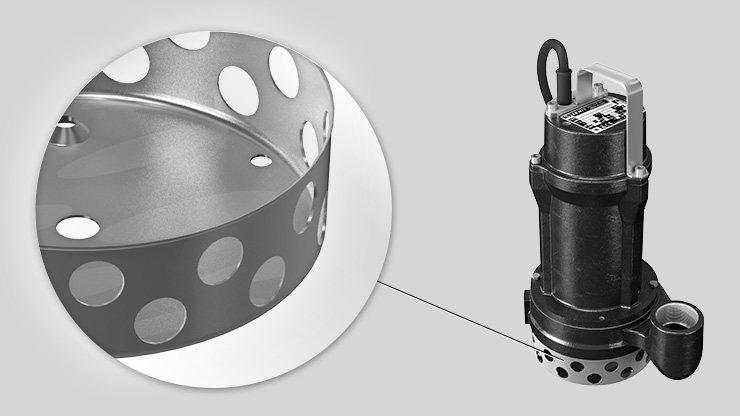

Zenit E Series electric submersible pump strainer
Stainless steel suction strainer.

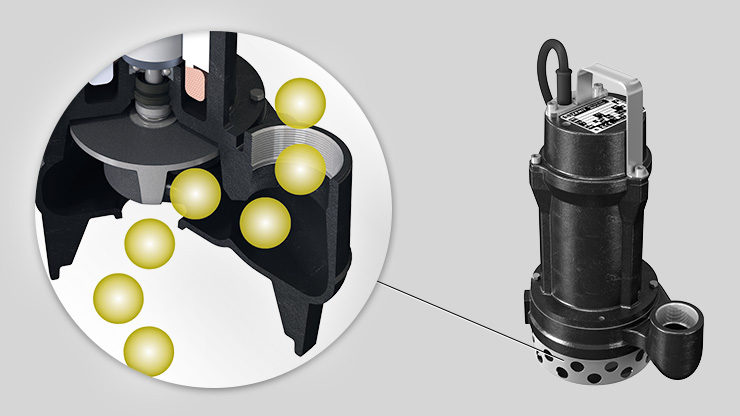

Zenit E Series electric submersible pump free passage
Ample free passage allowing the expulsion of solids and preventing fouling of the impeller.

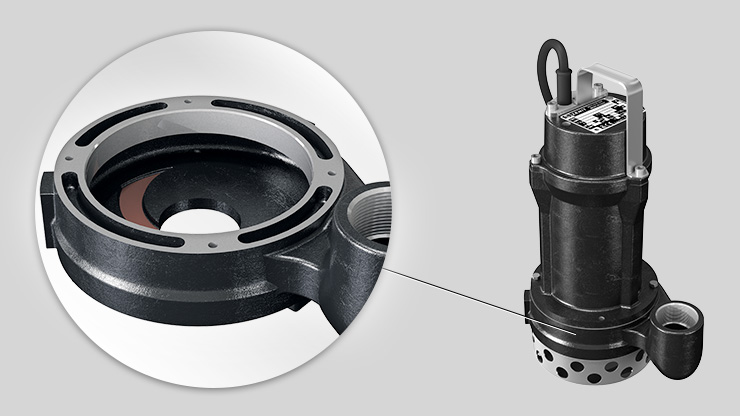

Zenit E Series electric submersible pump anti clogging system

The specially shaped hydraulics ensure the expulsion of small suspended solids and prevent fouling of the impeller.

Want to configure your product? Explore the Zeno Navigator Suite

Specifications

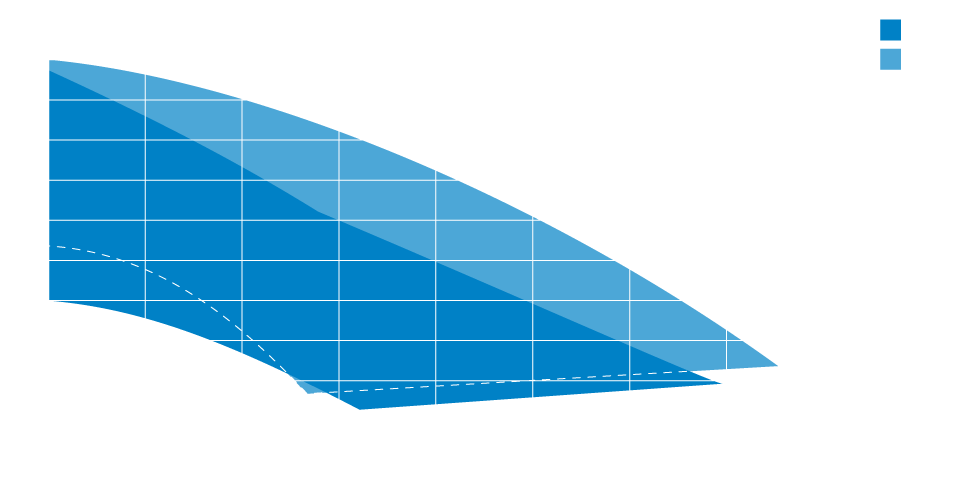

Zenit E Series electric submersible pump operating ranges
