Grey Series electric Submersible Pumps

The Grey series updates the offering with efficient, reliable products, while also rationalising the range.
The Grey project features completely redesigned hydraulics and motors, to guarantee high performance, low consumption and outstanding versatility.
This means clearer choices for end users selecting their products, and more efficient industrialisation. And greater efficiency means even better reliability and lower costs, all benefiting customers.

Models available in IECEx GREY II 2G Ex db h IIB T4 Gb certified version.

Range

Zenit Grey Series DGG electric submersible pump

DGG

DG [DRAGA]

  • Cast iron vortex impeller
  • Full free passage

  • Biological liquids and wastewater
  • Civil and industrial lifting
  • Wastewater treatment plants and livestock farms
Zenit Grey Series DG electric submersible pump impeller

Product range characteristics

  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    50 Hz
  • Power
    0.55 ÷ 15 kW
  • Poles
    2 / 4
  • Vertical discharge
    GAS 1½" / GAS 2½"
  • Horizontal discharge
    GAS 2" DN32 ÷ DN150
  • Free passage
    max 125 mm
  • Max flow rate
    105.6 l/s
  • Max head
    24.5m
  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    60 Hz
  • Power
    0.55 ÷ 15 kW
  • Poles
    2 / 4
  • Vertical discharge
    GAS 1½" / GAS 2½"
  • Horizontal discharge
    GAS 2" DN32 ÷ DN150
  • Free passage
    max 125 mm
  • Max flow rate
    105.6 l/s
  • Max head
    24.5m

Installations

Free installation of GREY Series DGG
FREE installation
Permanent installation of GREY Series DGG
PERMANENT installation
Installation of GREY Series DGG with DAC V bottom coupler
Installation with BOTTOM COUPLER
› DAC-V
Installation of GREY Series DGG with DAC H bottom coupler
Installation with BOTTOM COUPLER
› DAC-H
Zenit Grey Series DRG electric submersible pump

DRG

DR [DRENO]

  • Cast iron channel impeller
  • Large free passage

  • Recirculation of industrial and process waters
  • Civil lifting
  • Drainage and lifting of water from first rainfall tanks
Zenit Grey Series DR electric submersible pump impeller

Product range characteristics

  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    50 Hz
  • Power
    0.55 ÷ 18.5 kW
  • Poles
    2 / 4 / 6
  • Vertical discharge
    GAS 1½" ÷ GAS 2½"
  • Horizontal discharge
    GAS 1½" DN32 ÷ DN250
  • Free passage
    max 110x70mm
  • Max flow rate
    205.3 l/s
  • Max head
    50.0 m
  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    50 Hz
  • Power
    0.55 ÷ 18.5 kW
  • Poles
    2 / 4 / 6
  • Vertical discharge
    GAS 1½" ÷ GAS 2½"
  • Horizontal discharge
    GAS 1½" DN32 ÷ DN250
  • Free passage
    max 110x70mm
  • Max flow rate
    205.3 l/s
  • Max head
    50.0 m

Installations

Permanent installation of GREY Series DRG
FREE installation
Permanent installation of GREY Series DRG
PERMANENT installation
Installation of GREY Series DRG with DAC V bottom coupler
Installation with BOTTOM COUPLER
› DAC-V
Installation of GREY Series DRG with DAC H bottom coupler
Installation with BOTTOM COUPLER
› DAC-H
Zenit Grey Series GRG electric submersible pump

GRG

GR [GRINDER]

  • Cast iron multi-channel open impeller
  • Grinding system with rotary knife

  • Soiled waters containing fibres and filaments
  • Professional and industrial applications
  • Livestock farms
Zenit Grey Series GR electric submersible pump impeller

Product range characteristics

  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    50 Hz
  • Power
    1.1 ÷ 7.5 kW
  • Poles
    2
  • Vertical discharge
    -
  • Horizontal discharge
    GAS 1½" DN32 / GAS 2" DN50
  • Free passage
    -
  • Max flow rate
    8.3 l/s
  • Max head
    53.3 m
  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    60 Hz
  • Power
    1.1 ÷ 7.5 kW
  • Poles
    2
  • Vertical discharge
    -
  • Horizontal discharge
    GAS 1½" DN32 / GAS 2" DN50
  • Free passage
    -
  • Max flow rate
    8.3 l/s
  • Max head
    53.3 m

Installations

Free installation of GREY Series GRG
FREE installation
Permanent installation of GREY Series GRG
PERMANENT installation
Installation of GREY Series GRG with DAC V bottom coupler
Installation with BOTTOM COUPLER
› DAC-V
Installation of GREY Series GRG with DAC H bottom coupler
Installation with BOTTOM COUPLER
› DAC-H
Zenit Grey Series APG electric submersible pump

APG

AP [ALTA PREVALENZA]

  • Cast iron multi-channel open impeller
  • High manometric head

  • Industrial applications and car-washes
  • Clean water in fountains and water features
  • Irrigation and fish farming
Zenit Grey Series AP electric submersible pump impeller

Product range characteristics

  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    50 Hz
  • Power
    1.1 ÷ 7.5 kW
  • Poles
    2
  • Vertical discharge
    -
  • Horizontal discharge
    GAS 1½" DN32 - GAS 2" DN50
  • Free passage
    max 10mm
  • Max flow rate
    10.5 l/s
  • Max head
    51.9 m
  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    60 Hz
  • Power
    1.1 ÷ 7.5 kW
  • Poles
    2
  • Vertical discharge
    -
  • Horizontal discharge
    GAS 1½" DN32 - GAS 2" DN50
  • Free passage
    max 10mm
  • Max flow rate
    10.5 l/s
  • Max head
    51.9 m

Installations

Free installation of GREY Series APG
FREE installation
Permanent installation of GREY Series APG
PERMANENT installation
Installation of GREY Series APG with DAC V bottom coupler
Installation with BOTTOM COUPLER
› DAC-V
Installation of GREY Series APG with DAC H bottom coupler
Installation with BOTTOM COUPLER
› DAC-H

Details

atex Grey Series electric submersible pump
On request available ATEX version of the pump suitable for installation in potentially explosive atmosphere. Humidity probe to detect water in the mechanical-seal oil-chamber is standard also for ATEX version.
Zenit Grey Series electric submersible pump handle
Rugged stainless steel lifting and carrying handle.
Zenit Grey Series electric submersible pump cable gland
The universal GAS thread of the cable gland is able to take a sheathing pipe to protect the power cable from mechanical or chemical damage due to turbulence or the aggressive nature of the liquid.
Zenit Grey Series electric submersible pump pressure test
Every model undergoes pressurised testing to guarantee perfect assembly and operation of the gaskets, cable gland and mechanical seals.
Zenit Grey Series electric submersible pump drive shaft
Drive shaft in AISI 431 stainless steel. Connection to impeller via tapered coupling.
Zenit Grey Series electric submersible pump mechanical seals
Two mechanical seals in silicon carbide (SiC-SiC) enclosed in an inspectable oil chamber. This prevents all contact between the mechanical seals and any solids or filaments in the wastewater.
Zenit Grey Series electric submersible pump oil chamber
Large, inspectable oil chamber to guarantee longer mechanical seal lifetime. Leakage detection sensor.
Zenit Grey Series electric submersible pump anti clogging
The special conformation of the hydraulic part ensures the expulsion of solids and prevents fouling of the impeller.

Want to configure your product? Explore the Zeno Navigator Suite

Specifications

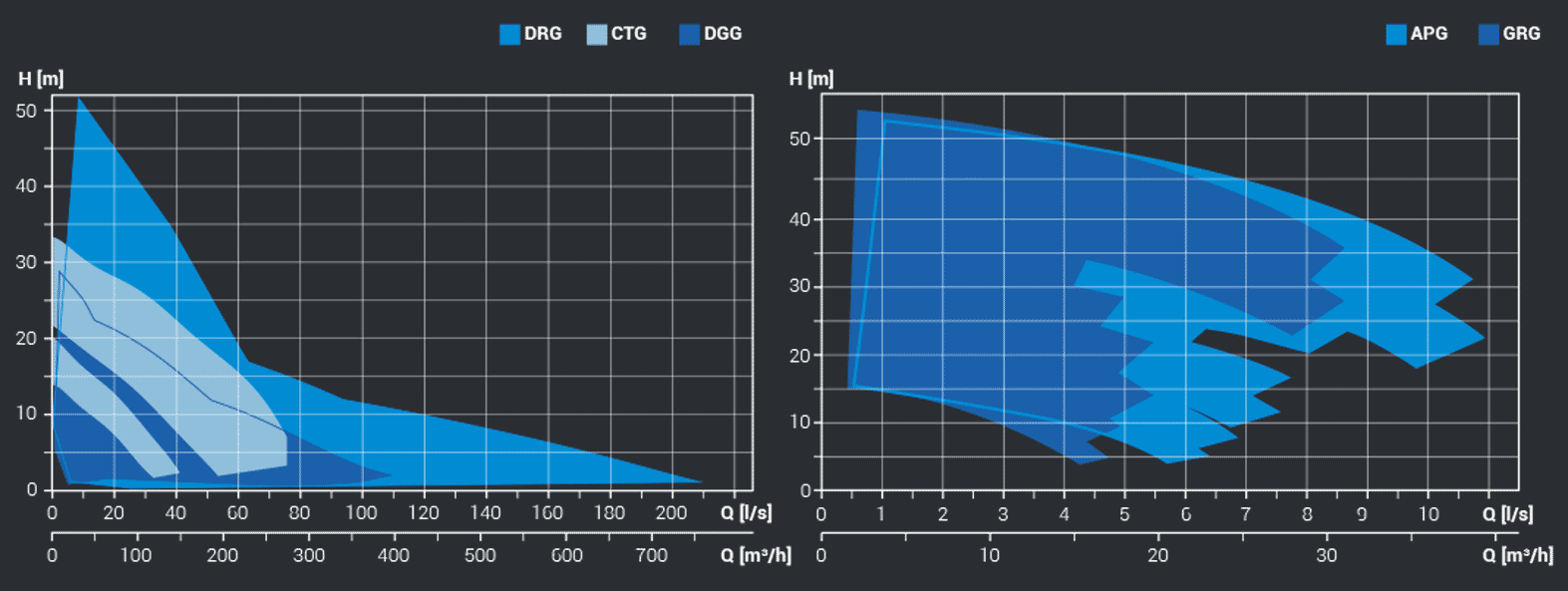

Zenit Grey Series electric submersible pump operating ranges 50Hz
Max operating temperature 40°C
pH of treated liquid 6 ÷ 14
Viscosity of treated liquid 1 mm²/s
Max immersion depth 20 m
Density of treated fluid 1.1 Kg/dm³
Max acoustic pressure <70 dB
Max starts per hour 20 [<10 kW] / 15 [>10kW]
Motor casing  Cast iron GJL-250
Impeller Cast iron GJL-250
Mechanical seals Two in silicon carbide (2SiC)
Nuts and bolts Stainless steel - Class A2-70
Standard gaskets NBR
Drive shaft AISI 431 stainless steel
Cutting knife Chromium steel [GRG]
Painting Bicomponent epoxy paint with high resistance to corrosion
Zenit DAC V 32 50 couplers

DAC-V 32÷50

Zenit DAC V 65 350 couplers

DAC-V 65÷350

Zenit DAC H couplers

DAC-H

Zenit KBS base plates

KBS

Zenit KBC base plates

KBC

Zenit FLX flushing valve

FLX

Zenit SRP knife gate valve

SRP

Zenit VAC clapet check valve

VAC

Zenit VAP 32 50 ball check valve

VAP 32÷50

Zenit VAP 65 300 ball check valve

VAP 65÷300

Zenit KCR Gas 2 bend unions

KCR GAS 2"

Zenit KCR Uni bend unions

KCR UNI

Zenit KCR Uni Gas bend unions

KCR UNI-GAS

Zenit KFL flange

KFL

Zenit KAT chain

KAT

Zenit MAC 3 float switch

MAC 3

Zenit LEVEL float switch

LEVEL

zenit standard electromechanical control panels

Standard electromechanical

zenit full service electromechanical control panels

Full service electromechanical

Zenit self powered alarm panel

Alarms
