ZM high-efficiency mixing systems

Zenit ZMD and ZMR series mixers can be used in equalisation, denitrification and homogenisation processes in industrial and civil plants.

Submerged mixers are the most practical, efficient solution for mixing liquids in water treatment and purification plants. Suitably installed in tanks, these devices apply a force varying depending on the propeller diameter, shape and rotation speed to the liquid in which they are immersed, and keep the mass of fluid in motion to boost homogenisation and prevent sediment formation.

They can be adopted in single or multiple installations, or in combination with bottom aeration systems, depending on the process in which they are used. Their efficiency class IE3 motors, already applied on the Zenit UNIQA range of submersible pumps, keep running costs down, with low energy use and limited maintenance.

Their complete compatibility and vast assortment of accessories allow them to be installed in any point of the tank, both for optimal mixing and for use as replacements for obsolete devices in existing systems.

Models available also in IECEx  MIXER II 2G Ex db h IIB T4 Gb  certified version.

Range

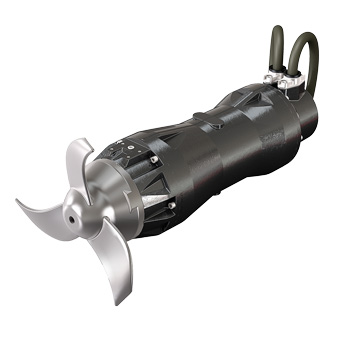

Zenit ZMD mixers

ZMD

MIXERS


  • Direct transmission

Product range characteristics

  • P2
    0.75 ÷ 4.5 kW
  • Poles
    4/6/8
  • Motor rotation speed
    1450 ÷ 750 rpm
  • Propeller Ø
    200 ÷ 400 mm
  • Thrust
    155 ÷ 1060 N
  • Propeller rotation speed
    1450 ÷ 750 rpm
  • P2
    1.1 ÷ 4.5 kW
  • Poles
    4 ÷ 8
  • Motor rotation speed
    1750 ÷ 875 rpm
  • Propeller Ø
    200 ÷ 400 mm
  • Thrust
    225 ÷ 970 N
  • Propeller rotation speed
    1750 ÷ 875 rpm

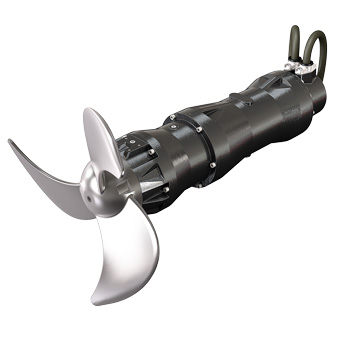

Zenit ZMR mixers

ZMR

MIXERS


  • Reduction gears

Product range characteristics

  • P2
    3 ÷ 7.5 kW
  • Poles
    4/6
  • Motor rotation speed
    960 ÷1450 rpm
  • Propeller Ø
    650 mm
  • Thrust
    800 ÷ 2100 N
  • Propeller rotation speed
    177 ÷ 300 rpm
  • P2
    4 ÷ 7.5 kW
  • Poles
    4
  • Motor rotation speed
    1450 rpm
  • Propeller Ø
    650 mm
  • Thrust
    1365 ÷ 2125 N
  • Propeller rotation speed
    245 ÷ 307 rpm

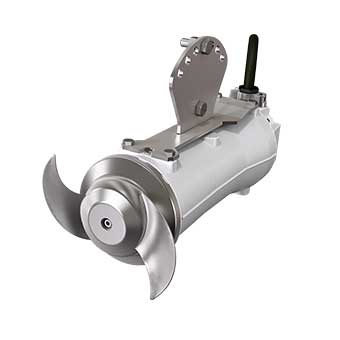

Zenit ZMXD mixers

ZMXD

MIXERS


  • Direct transmission

Product range characteristics

  • P2
    0.75 ÷ 1.1 kW
  • Poles
    4
  • Motor rotation speed
    1396 rpm
  • Propeller Ø
    200 mm
  • Thrust
    155 ÷ 210 N
  • Propeller rotation speed
    1396 rpm
  • P2
    0.75 ÷ 1.1 kW
  • Poles
    4
  • Motor rotation speed
    1396 rpm
  • Propeller Ø
    200 mm
  • Thrust
    155 ÷ 210 N
  • Propeller rotation speed
    1396 rpm

Installations

To guarantee top mixer performance, ZENIT has developed a wide range of accessories for adjusting devices' positions in the tank and lifting and removing them without having to drain the system. Designed for easy installation and generously sized to guarantee durability, accessories are available in galvanised or stainless steel.

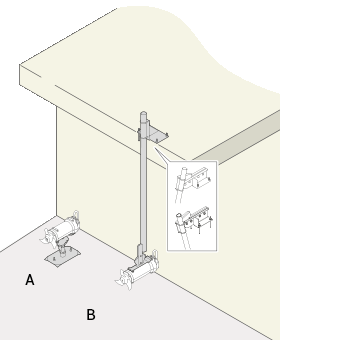

Bottom installation (A)
Permanent installation, with the mixer connected to a base anchored to the bottom of the tank. A special adjustment plate allows the mixer's horizontal and vertical position to be set as specifically required by the system.

Pendular installation (B)
Mobile installation in which the mixer can be both installed and removed with the tank full. The mixer is suspended from a suspension pipe and fixed to a mounting bracket; it can be adjusted both horizontally and vertically.

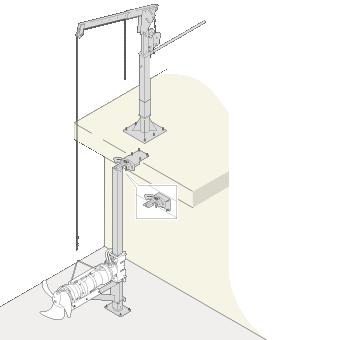

Mast installation
The most widely used installation mode, suitable for mixers of any shape and size. The mixer, fitted with a runner which is also compatible with existing installations, slides along a square post and can be removed with no need to drain the tank, thanks to rugged lifting jib cranes. The mixer can be horizontally adjusted for the best possible position, while vertical adjustment is possible with the aid of special optional runners.

Details

ATEX Zenit ZM Series mixer Zenit
On request available ATEX version of the pump suitable for installation in potentially explosive atmosphere. Humidity probe to detect water in the mechanical-seal oil-chamber is standard also for ATEX version.

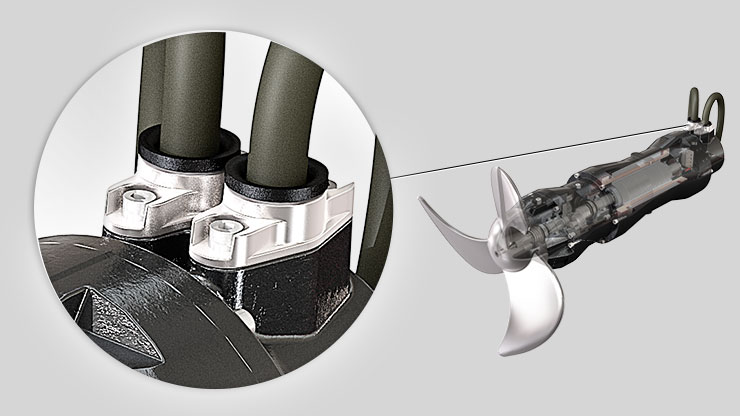

cable gland Zenit mixers ZM Series

Innovative cable gland system with cable holder. The universal thread ring-nut can be removed to fix a rigid or flexible duct to the cable gland to protect the cable from physical and mechanical stresses.

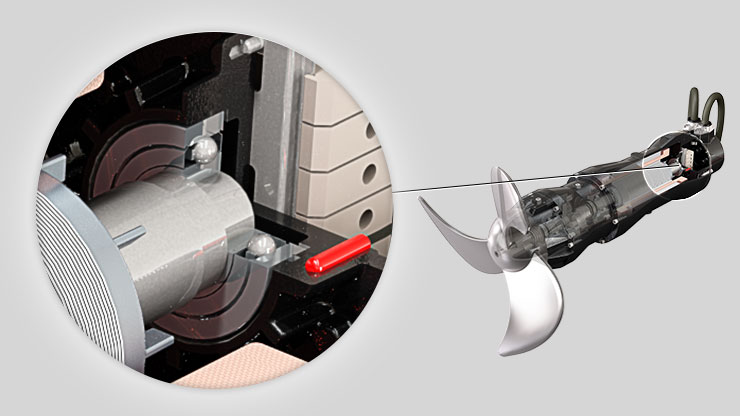

bearings Zenit mixers ZM Series
Ball bearings with lifetime lubrication designed to guarantee 100,000 working hours. Temperature sensor on request.

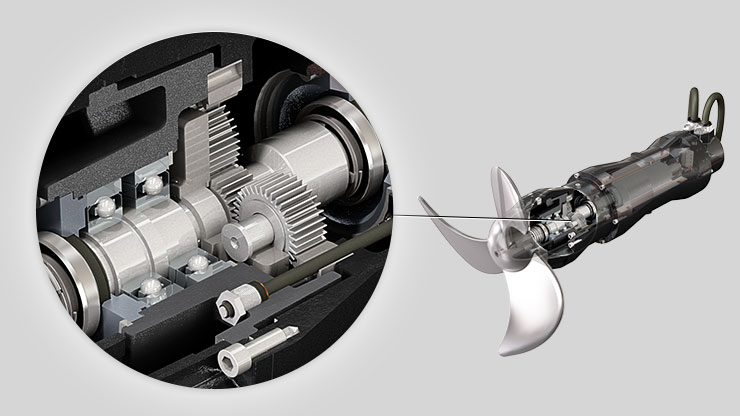

reduction gerabox Zenit mixers ZM Series

Rugged planetary reduction gearbox which provides high reduction ratios and torque transfer and withstands heavy radial loads, with compact size and light weight.

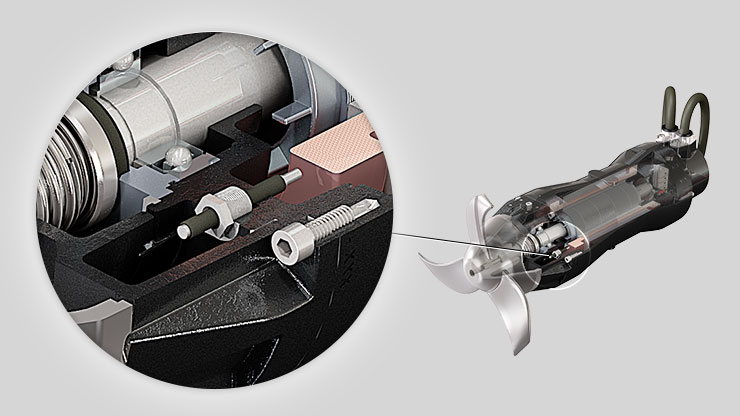

monitoring Zenit mixers ZM Series

Water sensor detecting seepage into the mechanical seal oil chamber The temperature sensors prevent possible damage due to overheating of the motor and bearings. (other monitoring options are available for the ZMR 065 and ZMR 090 models on request)

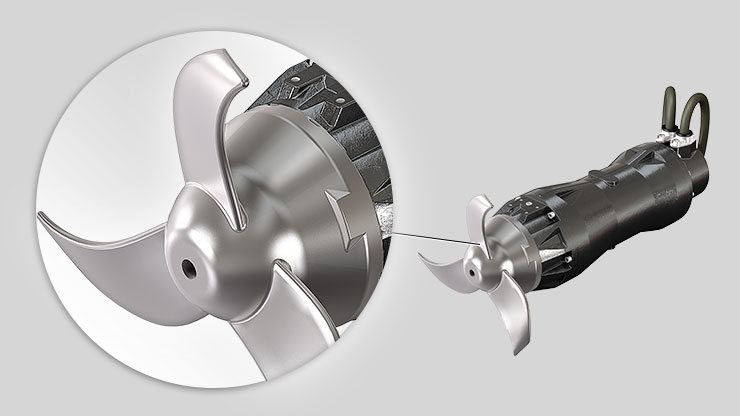

propeller Zenit mixers ZM Series

Stainless steel propeller, designed with specially shaped blades to ensure high hydraulic efficiency and prevent fouling with filaments and solids. Extra thick for ruggedness and reliability even in heavy-duty conditions.

A special chopper system in the rear of the propeller prevents the entry of filaments which could become entangled around the drive shaft and impair its operation.

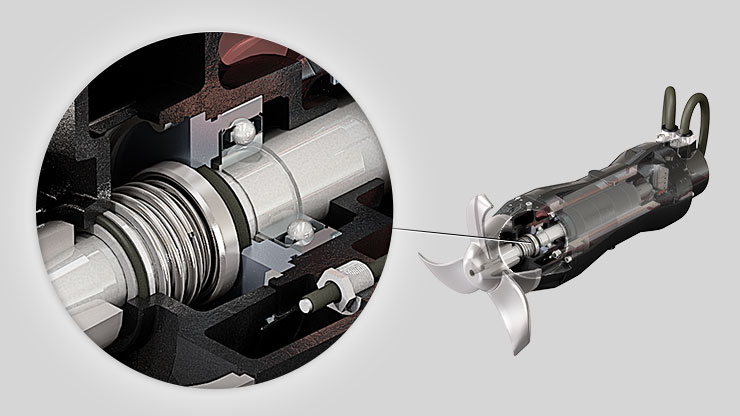

mechanical seals Zenit mixers ZM Series

Two silicon carbide (SiC) mechanical seals in large, inspectable oil chamber. ZMR models equipped with 3 mechanical seals.

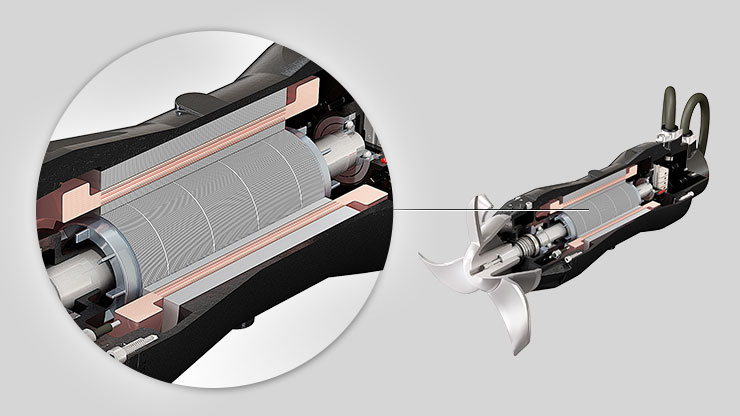

motor Zenit mixers ZM Series

Premium IE3 class cold-running motor for high efficiency and minimal energy use. Isolation class H (180°C).
