Steel Series electric submersible pumps

High-performance, compact stainless steel submersible pumps for optimal service in household installations and small civil plants. Two different types of hydraulics are available for the maximum flexibility:

  • DRENO (DR steel) with multi-channel open impeller for applications with clear or slightly soiled wastewaters
  • DRAGA (DG steel) impeller for applications with heavily soiled wastewaters and solid bodies, thanks to the free passage of up to 40 mm.

The cooling system allows these pumps to be used even when only partially submerged and in particular the DR steel version is easily converted into a dry floor pump, with suction levels as little as 5 mm above the ground.
Every model undergoes pressurised testing to guarantee perfect assembly and operation of the gaskets, cable gland and mechanical seals.

Thanks to their convenience and ease of handling, steel models can also be used in emergencies for pumping-out flooding premises or for temporary installations for pumping from wells and tanks.
What's more, the DR steel version also provides an excellent lifting station installed inside the nanoBOX tank for the collection and transfer of domestic wastewaters.

Range

Zenit Steel DG electric submersible pump

DG steel

DG [DRAGA]

  • Stainless steel vortex impeller
  • Large free passage

  • Sewage
  • Soiled wastewaters with solids
  • Lifting stations in civil and residential plants
Zenit Steel DG electric submersible pump impeller

Product range characteristics

  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    50 Hz
  • Power
    0.37 ÷ 0.75 kW
  • Poles
    2
  • Vertical discharge
    GAS 1¼" - GAS 1½"
  • Horizontal discharge
    -
  • Free passage
    max 40mm
  • Max flow rate
    378 l/min
  • Max head
    10.0 m
  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    60 Hz
  • Power
    0.37 ÷ 0.75 kW
  • Poles
    2
  • Vertical discharge
    GAS 1¼" - GAS 1½"
  • Horizontal discharge
    -
  • Free passage
    max 40mm
  • Max flow rate
    390 l/min
  • Max head
    9.2 m

Installations

Free installation of Steel DG
FREE installation
Permanent installation of Steel DG
PERMANENT installation
Zenit Steel DR electric submersible pump

DR steel

DR [DRENO]

  • Stainless steel multi-channel open impeller
  • Stainless steel suction strainer

  • Clear or slightly soiled wastewaters
  • Pumping-out flooded premises
  • Garden sprinklers and pumping from tanks
Zenit Steel DR electric submersible pump impeller

Product range characteristics

  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    50 Hz
  • Power
    0.25 ÷ 0.75 kW
  • Poles
    2
  • Vertical discharge
    GAS 1¼" - GAS 1½"
  • Horizontal discharge
    -
  • Free passage
    max 12mm
  • Max flow rate
    335 l/min
  • Max head
    16 m
  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    60 Hz
  • Power
    0.25 ÷ 0.75 kW
  • Poles
    2
  • Vertical discharge
    GAS 1¼" - GAS 1½"
  • Horizontal discharge
    -
  • Free passage
    max 12mm
  • Max flow rate
    350 l/min
  • Max head
    14.7 m

Installations

Free installation of Steel DR
FREE installation
Permanent installation of Steel DR
PERMANENT installation

Details

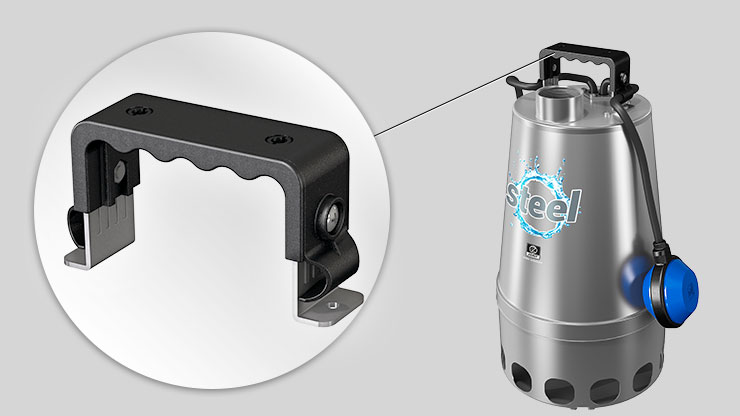

Zenit Steel Series electric submersible pump adjustable float switch handle
In AISI 304 stainless steel with ergonomic, insulating techno-polymer coating. Float switch stroke adjustment system for modification of start-stop levels.
Zenit Steel Series electric submersible pump free passage

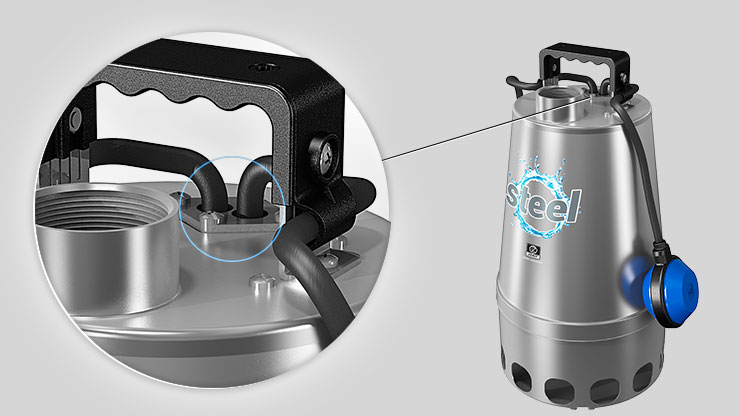

Cable gland system with dual safety device to prevent disconnection even in case of accidental pulling.
Zenit Steel Series electric submersible pump hose connector
Handy hose connector included. The ring-nut allows easy disconnection of the pump from the discharge line. [DR steel 25 - 37]

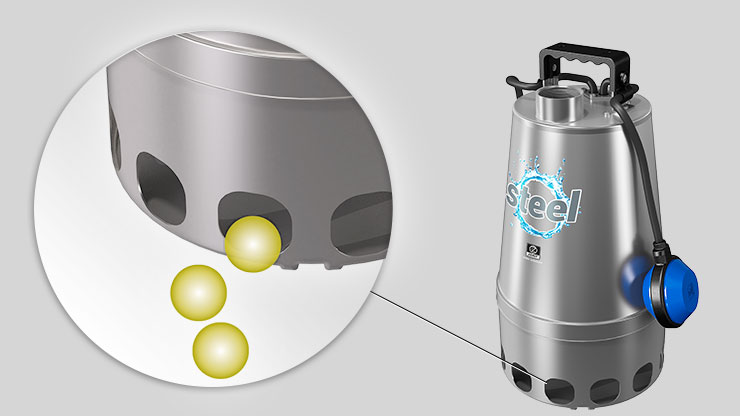

Zenit Steel Series electric submersible pump free passage
Free passage up to 40 mm. [DG steel]

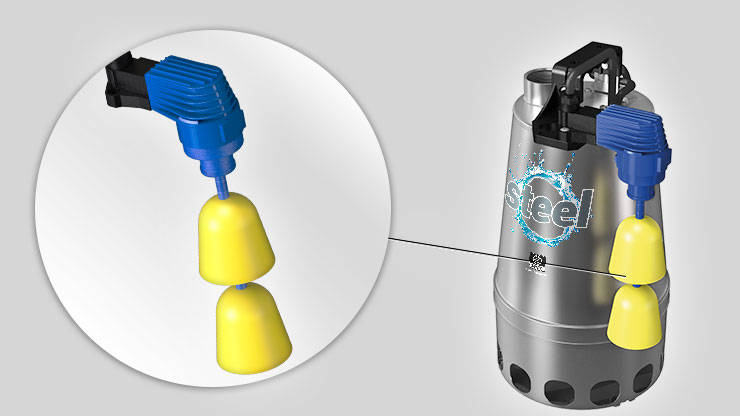

Zenit Steel Series electric submersible pump vertical float switch
The float switch stroke can be adjusted to modify the start/stop level and optimise operation. The vertical travel level switch is available for installation in small pits. [Optional]
Zenit Steel Series electric submersible pump oil chamber
The cooling jacket ensures an optimal motor temperature even with the pump only partially submerged.

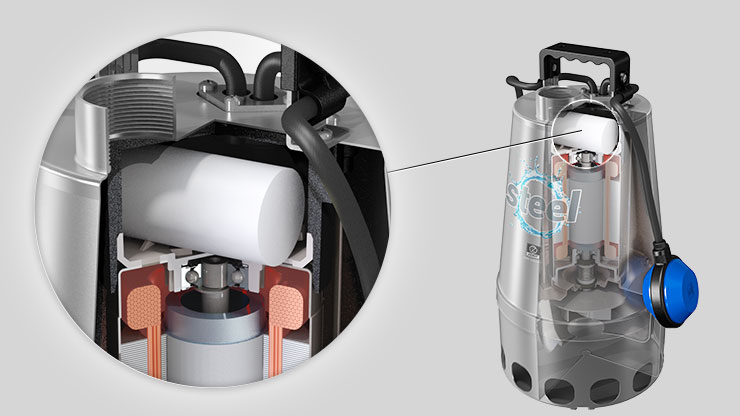

Zenit Steel Series electric submersible pump relay capacitor
Single-phase models have internal capacitor. Three-phase models have relay for float-switch control of start/stop cycles.

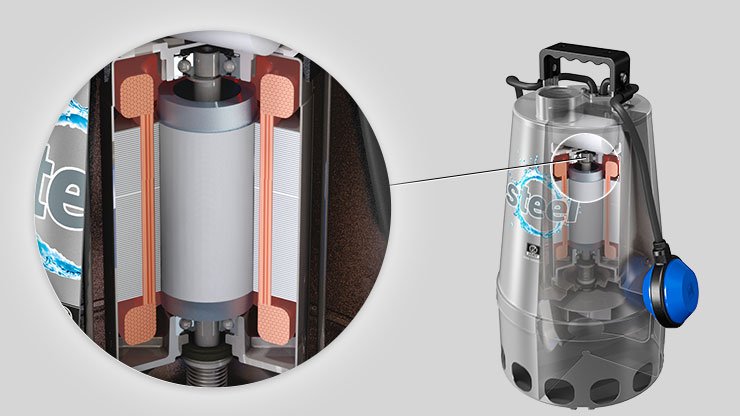

Zenit Steel Series electric submersible pump drive shaft
Integral drive shaft in AISI 431 stainless steel for high strength and to allow use with brine or chlorine.

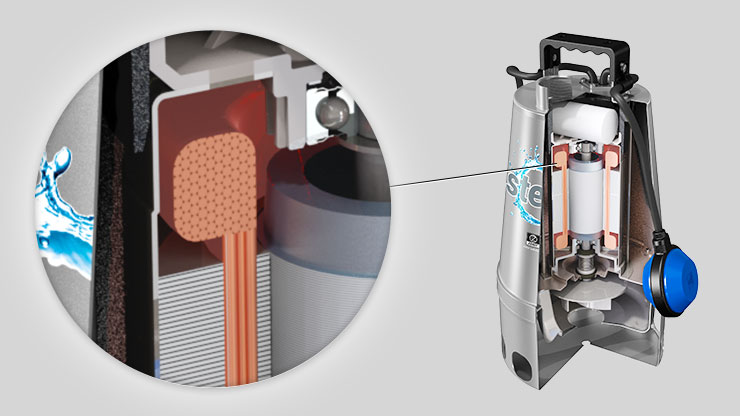

Zenit Steel Series electric submersible pump thermal overload protection device
Dry motor protection with thermal overload.

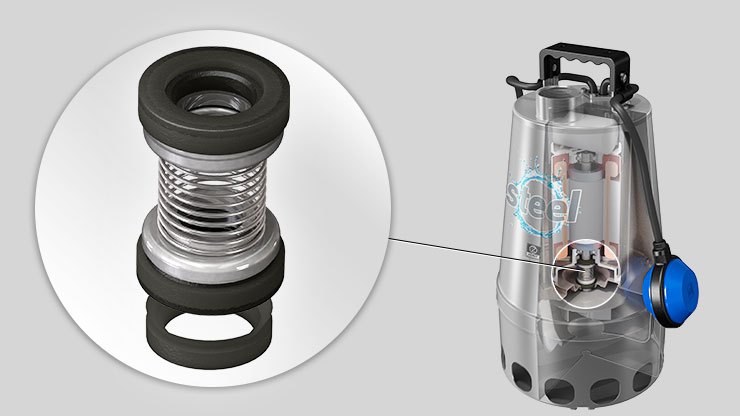

Zenit Steel Series electric submersible pump V ring mechanical seals
Double silicon carbide mechanical seal in oil chamber with food-grade oil lubrication. The V-Ring in direct contact with the liquid protects the mechanical seals from foreign bodies to keep them in good working condition.

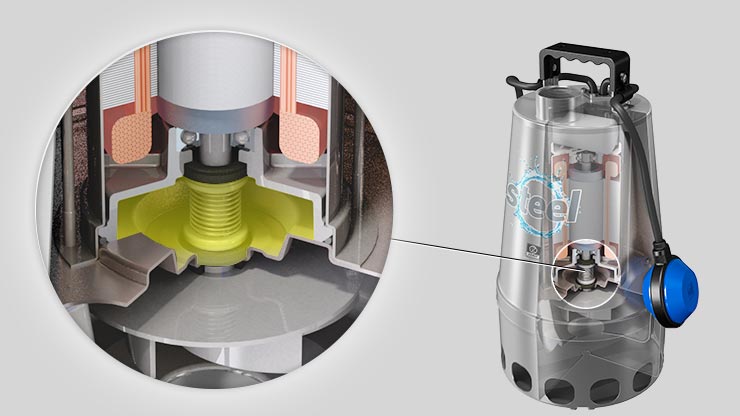

Zenit Steel Series electric submersible pump oil chamber
Large oil chamber guarantees long mechanical seal lifetime.

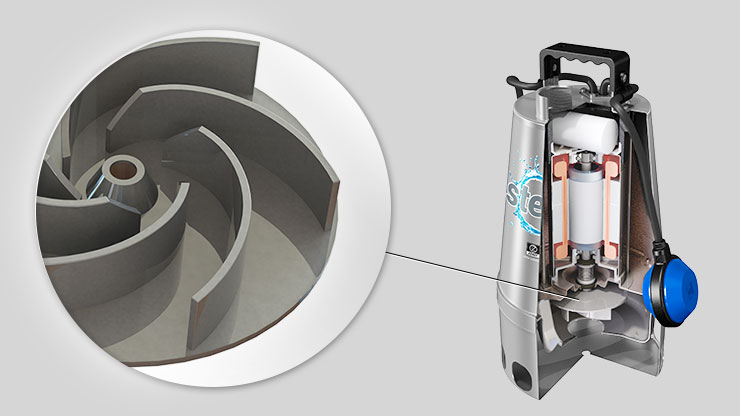

Zenit Steel Series electric submersible pump impeller

In AISI 304 stainless steel.

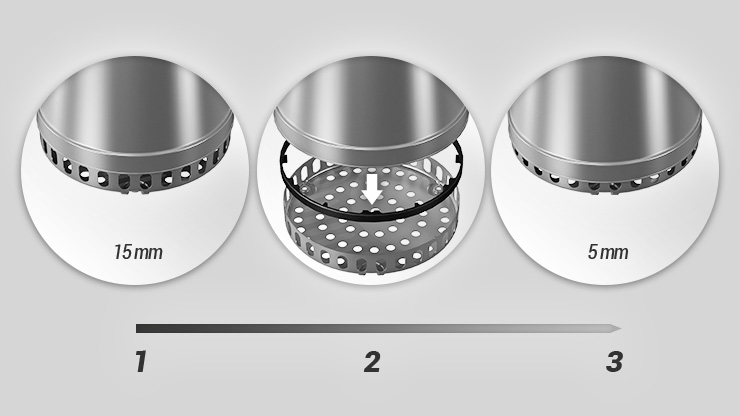

Zenit Steel Series electric submersible pump strainer
The DR steel easily converts from an ordinary submersible pump to a dry floor unit. When operating in this mode, the suction level can be reduced to as little as 5 mm above the ground. [DR steel]

Want to configure your product? Explore the Zeno Navigator Suite

Specifications

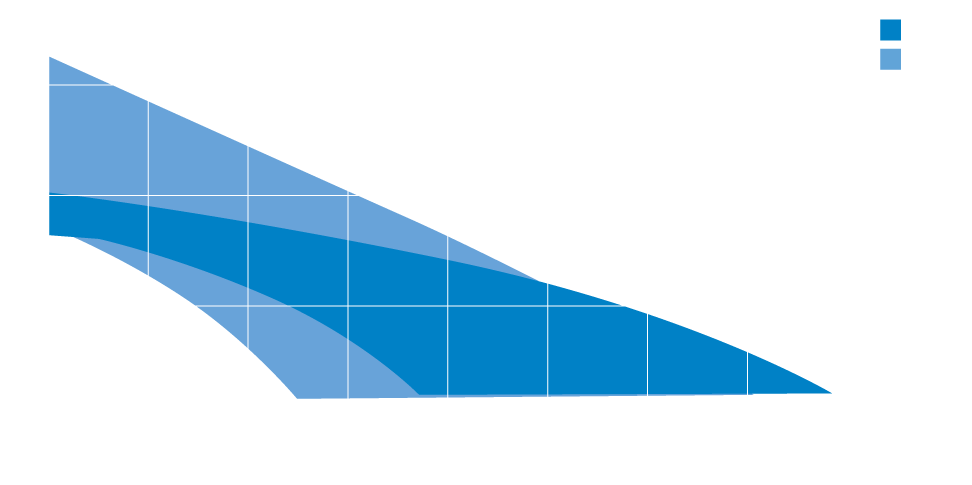

Zenit Steel Series electric submersible pump operating ranges
Max operating temperature 40°C [90°C max 3 min]
pH of treated liquid 6÷14
Viscosity of treated liquid 1 mm²/s
Max immersion depth 10 m
Density of treated fluid 1 kg/dm³
Max acoustic pressure <70 dB
Max starts per hour 30
Motor casing Stainless steel - AISI 304
Impeller Stainless steel - AISI 304
Nuts and bolts Stainless steel - Class A2-70
Standard gaskets NBR rubber
Shaft AISI 431 stainless steel
Zenit DAC E couplers

DAC-E

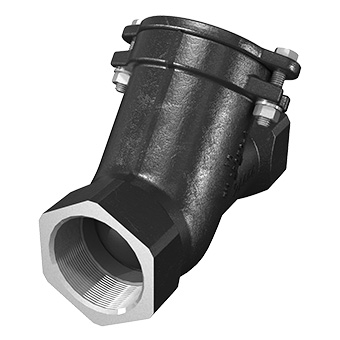

Zenit VAP 32 50 ball check valve
