blueBOX lifting stations

The blueBOX range of high quality polyethylene tanks are extremely versatile and easy to install. They are suitable for collecting clear, rain and wastewater from washing machines, sinks and WCs in systems installed at a lower level than the sewer, in locations such as garages or basements. The entire range use blue or bluePRO Series pumps, and are styled to match them.

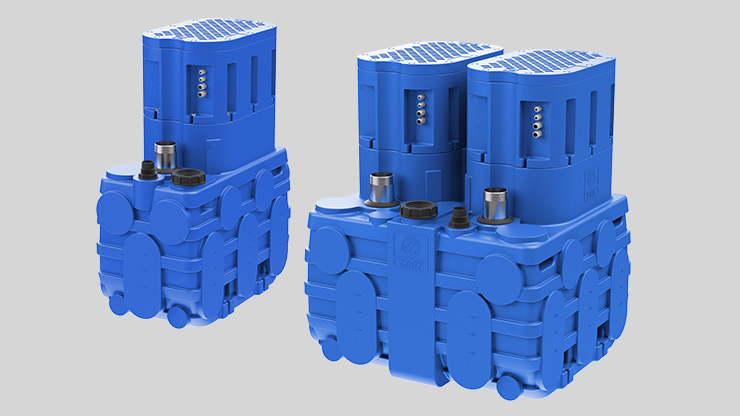

The 60, 90, 150 and 250 models, suitable for domestic and small residential installations, are equipped to house one electric pump. The blueBOX 400 model, intended for civil plants, can be equipped with two electric pumps for complete reliability.

blueBOX lifting stations can be installed on-floor or in-floor. They are prefitted for use with Zenit blue and bluePRO series pumpsstrong> with vortex impeller [DRAGA] or with grinding system [GRINDER], which must be ordered separately depending on the requirements. Specifically, the blueBOX 60 can also be used with multichannel open impeller (DRENO) or high head (ALTA PREVALENZA) pumps for higher heads when pumping clear or washbasin wastewaters.

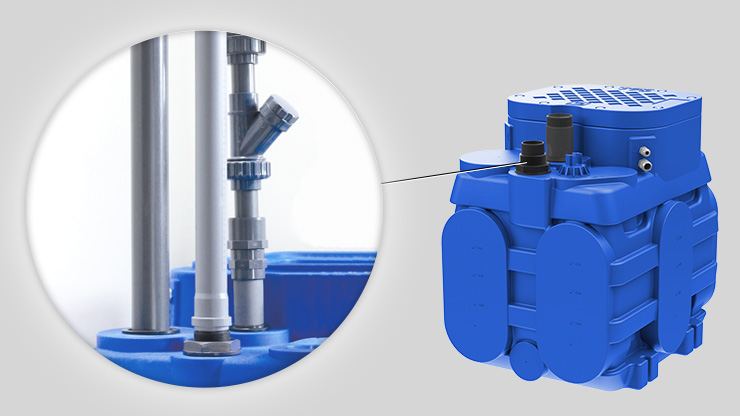

The large number of intake and outlet pipeline fittings allow optimal installation even on existing plants.

The many hydraulic and electric accessories make blueBOX lifting stations convenient to install and use. All models are suitable for direct installation thanks to the bottom shaped to hold the pump in position without the aid of additional accessories.

Convenient installation with a bottom coupler is also an option for the blueBOX250 and blueBOX400 models. A ball check valve and/or a gate valve can be connected to the end of the discharge pipe.

Range

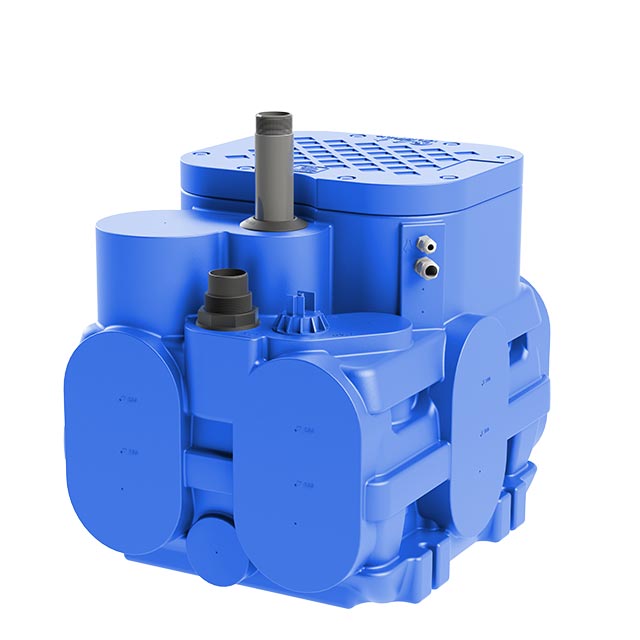

Zenit blueBOX Series 60 litre lifting stations

blueBOX 60

LIFTING STATIONS

  • Capacity from 60 litres

  • Domestic systems
  • Small residential installations

Product range characteristics

  • Capacity [l]
    60
  • Number of pumps
    1
  • Max liquid temperature
    40°C [fino a 90°C for short periods]
  • Intakes [Ø max]
    9xØ110 - 1xØ75
  • Discharge
    1xØ1½" - 1xØ2"
  • Accessories
    Cable glands
    Through-wall fitting for emergency drainage
    Float switch stroke reducer (for blue series pumps only]
  • Discharge pipe
    Ø1½" [PVC]
  • Gaskets
    1xØ110mm
    1xØ75mm
    2xØ50 mm
    1xØ1½" [discharge]
  • Weight [kg]
    8

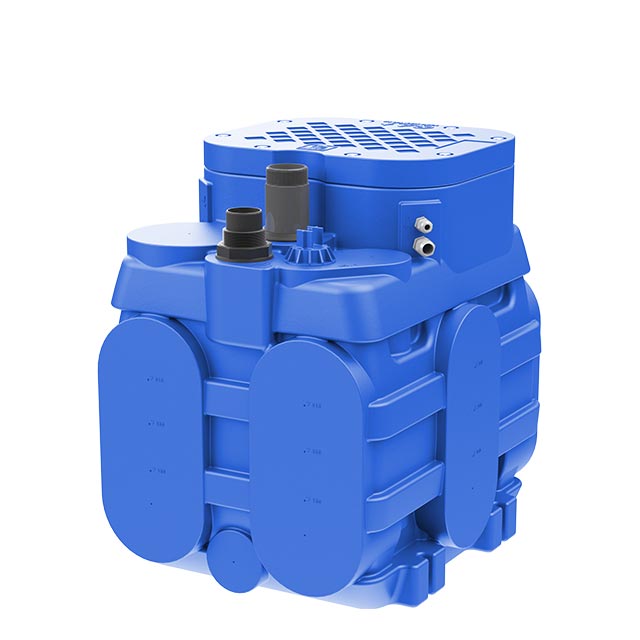

Zenit blueBOX Series 90 litre lifting stations

blueBOX 90

LIFTING STATIONS

  • Capacity from 90 litres

  • Domestic systems
  • Small residential installations

Product range characteristics

  • Capacity [l]
    90
  • Number of pumps
    1
  • Max liquid temperature
    40°C [fino a 90°C for short periods]
  • Intakes [Ø max]
    9xØ110 - 1xØ75
  • Discharge
    1xØ1½" - 1xØ2"
  • Accessories
    Cable glands
    Through-wall fitting for emergency drainage
    Float switch stroke reducer (for blue series pumps only]
  • Discharge pipe
    Ø1½" [PVC] - Ø2" [PVC]
  • Gaskets
    1xØ110mm
    1xØ75mm
    2xØ50 mm
    1xØ1½", 1xØ2" [discharge]
  • Weight [kg]
    9

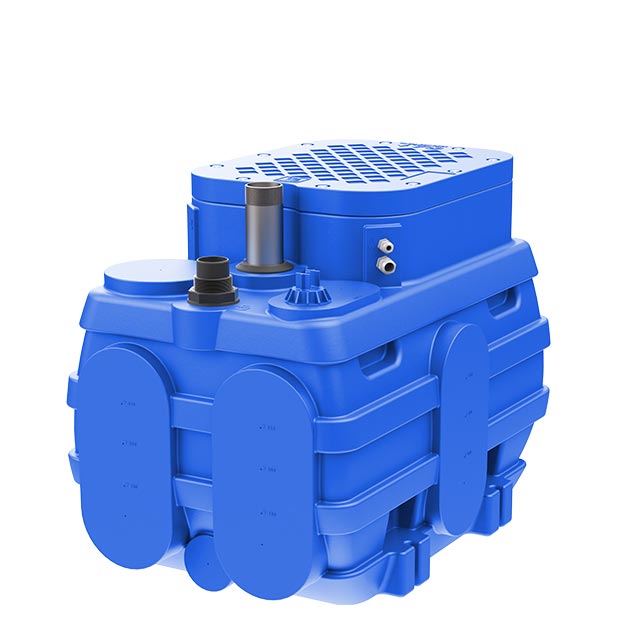

Zenit blueBOX Series 150 litre lifting stations

blueBOX 150

LIFTING STATIONS

  • Capacity from 150 litres

  • Domestic systems
  • Small residential installations

Product range characteristics

  • Capacity [l]
    150
  • Number of pumps
    1
  • Max liquid temperature
    40°C [fino a 90°C for short periods]
  • Intakes [Ø max]
    9xØ110 - 1xØ75
  • Discharge
    1xØ1½" - 1xØ2"
  • Accessories
    Cable glands
    Through-wall fitting for emergency drainage
    Float switch stroke reducer (for blue Series pumps only]
  • Discharge pipe
    Ø1½" [PVC] - Ø2" [PVC]
  • Gaskets
    1xØ110mm
    1xØ75mm
    2xØ50 mm
    1xØ1½", 1xØ2" [discharge]
  • Weight [kg]
    9

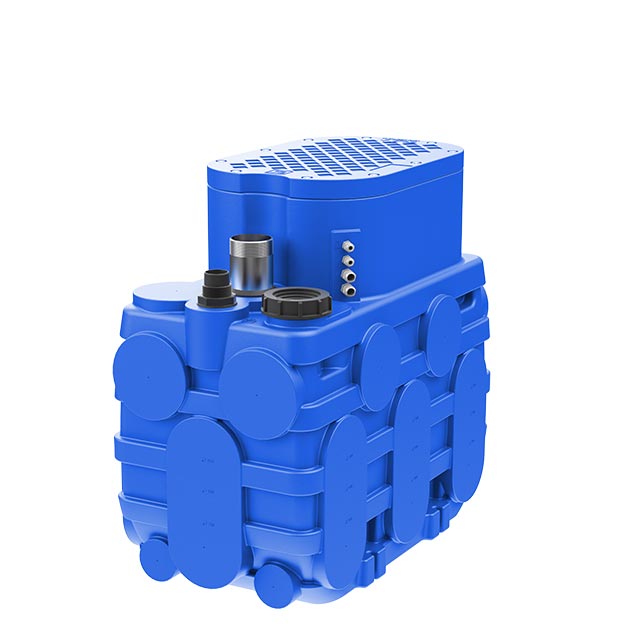

Zenit blueBOX Series 250 litre lifting stations

blueBOX 250

LIFTING STATIONS

  • Capacity from 250 litres

  • Domestic systems
  • Small residential installations

Product range characteristics

  • Capacity [l]
    250
  • Number of pumps
    1
  • Max liquid temperature
    40°C [fino a 90°C for short periods]
  • Intakes [Ø max]
    6xØ110
  • Discharge
    1xØ1½" ÷ Ø2
  • Accessories
    Cable glands
    Through-wall fitting for emergency drainage
  • Discharge pipe
    Ø1½" [PVC] - Ø2" [ZN]
  • Gaskets
    2xØ110mm
    1xØ75mm
    1xØ1½"
    1xØ2" [discharge]
  • Weight [kg]
    15
Zenit blueBOX Series 400 litre lifting stations

blueBOX 400

LIFTING STATIONS

  • Capacity from 400 litres

  • Civil systems
  • Medium-sized residential installations

Product range characteristics

  • Capacity [l]
    400
  • Number of pumps
    2
  • Max liquid temperature
    40°C [fino a 90°C for short periods]
  • Intakes [Ø max]
    12xØ110
  • Discharge
    2xØ1½" ÷ Ø2
  • Accessories
    Cable glands
    Through-wall fitting for emergency drainage
  • Discharge pipe
    Ø1½" [PVC] - Ø2" [ZN]
  • Gaskets
    4xØ110mm
    2xØ75mm
    2xØ1½"
    2xØ2" [mandata]
  • Weight [kg]
    31

Details

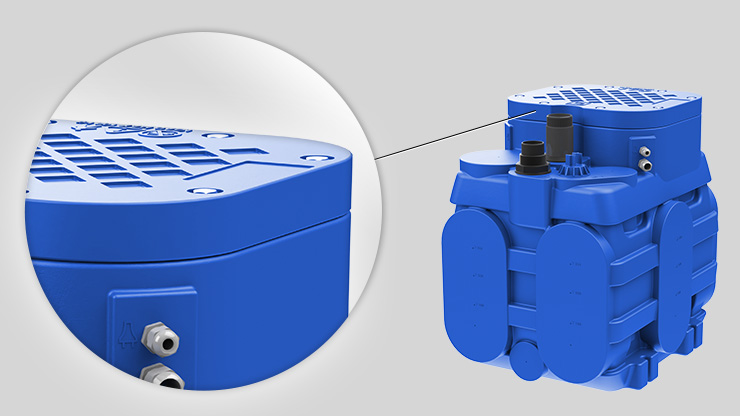

Zenit blueBOX Series lifting station cover
Rugged walk-over cover with gasket. The large cover allows a second pump to be added in emergencies, for easy, hygienic drainage.
Zenit blueBOX Series lifting station cable gland
PATENTED modular cable gland system allowing the pump or float switches to be removed with no need to disconnect or extract the power supply cable.
Zenit blueBOX Series lifting station inlets

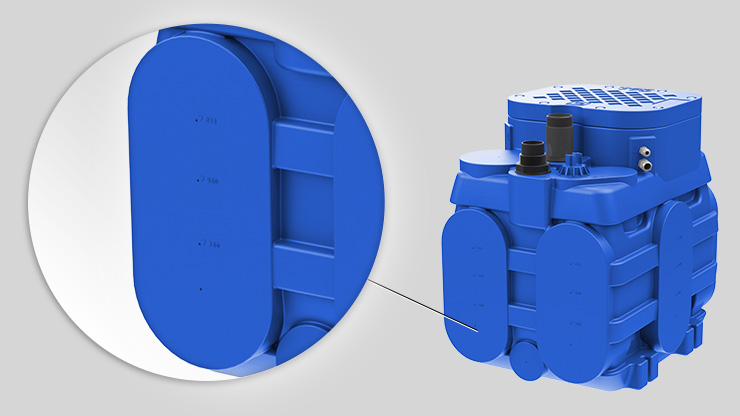

Wastewater pipeline intake ports also provided on sides.
Zenit blueBOX Series lifting station handles
Two integral handles for lifting and transport, for easy transfer by hand.
Zenit blueBOX Series lifting station gaskets
Guaranteed airtight thanks to NBR rubber gaskets which allow quick connection of pipes to the blueBOX with no need for sealants.

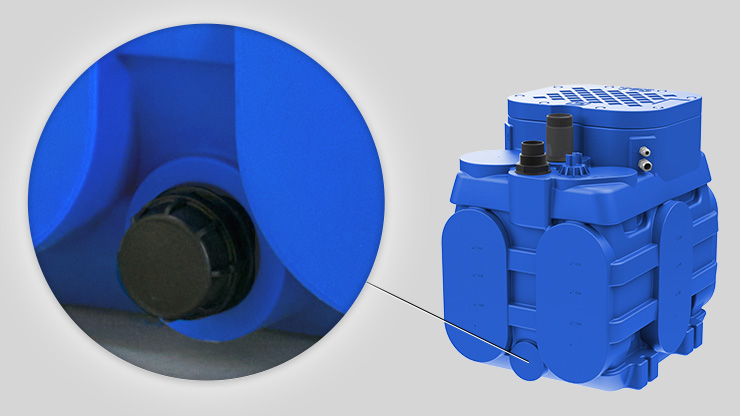

Zenit blueBOX Series lifting station emptying
Emergency drainage fitting located low down in the unit (threaded union included).
Zenit blueBOX Series lifting station anti overflow float switch
Connection to the alarm light and buzzer of a control panel, the float switch warns that the maximum filling threshold has been passed in the case of a pump failure or excessive inflow of wastewater to the tank, allowing quick action to prevent overflows. [Optional]

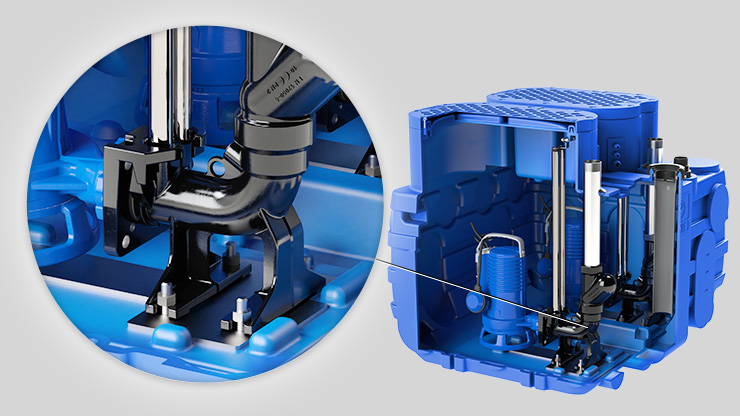

Zenit blueBOX Series lifting station coupling
A coupling allows the pump to be easily separated from the plant for any maintenance requirements, without disconnecting the pipes from the lifting station.

Want to configure your product? Explore the Zeno Navigator Suite

Specifications

60, 90, 150 and 250 models fitted to take one pump; up to two pumps can be installed for 400 model.

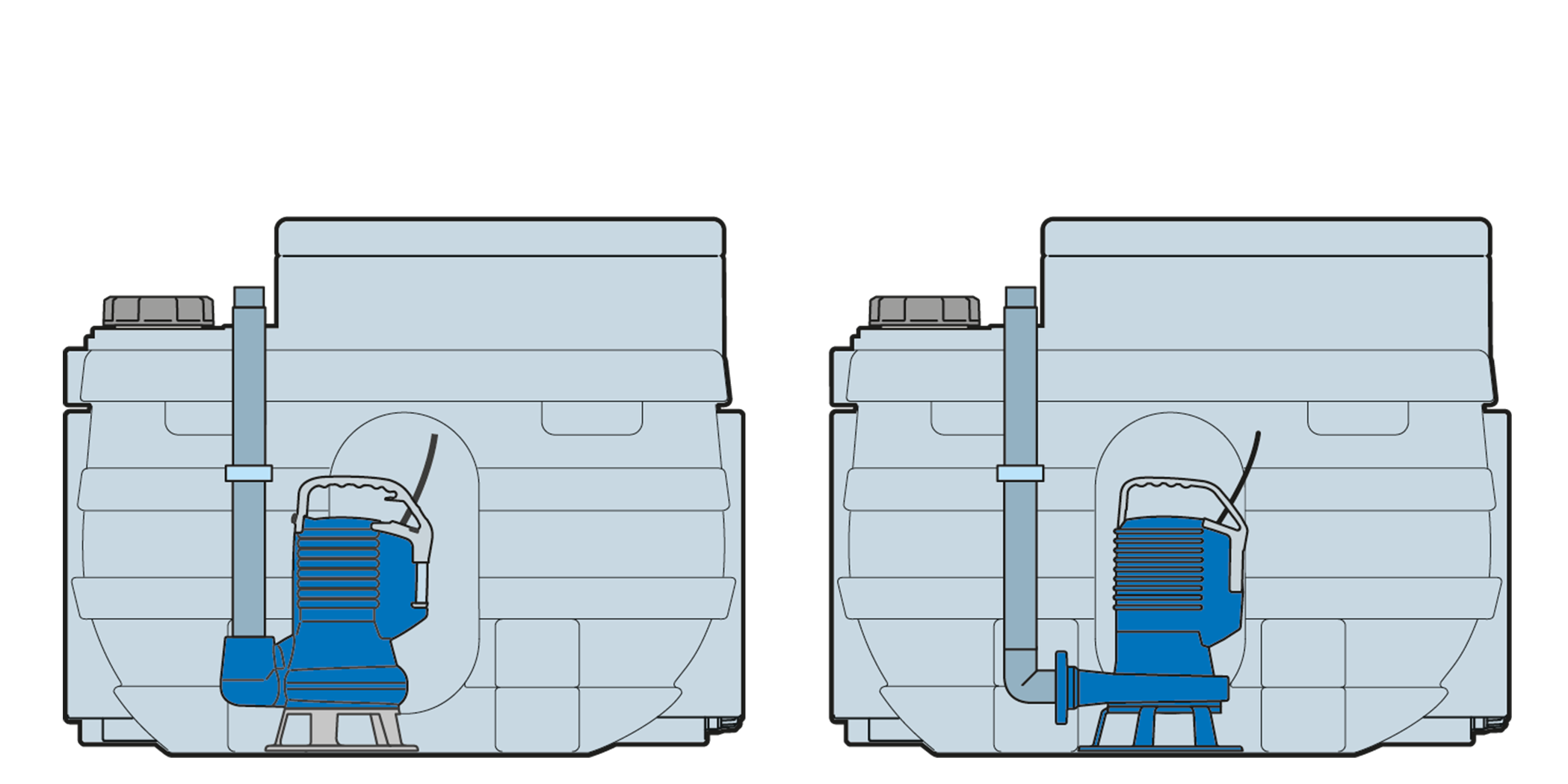

Direct installation possible for all models; coupler can be used for 250 and 400 models.
Walk-over cover
Gasket between tank and cover
Simplified intake, discharge and breather pipe installation with watertight gasket
Integral lifting handles
Emergency drainage fitting located low down in the unit
Patented watertight cable gland allowing easy pump removal

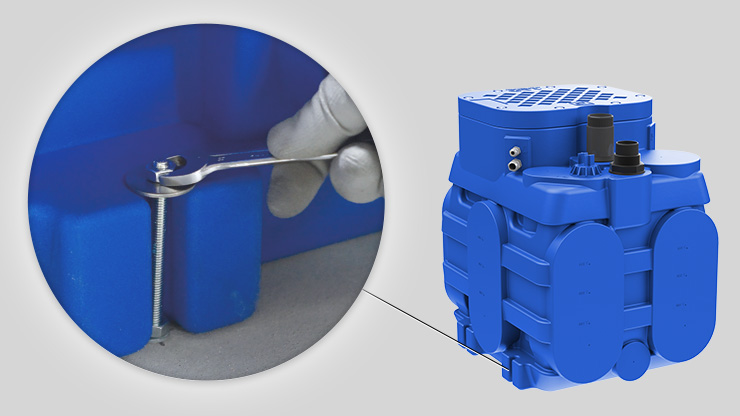

Side fins provide an excellent grip for in-floor installation

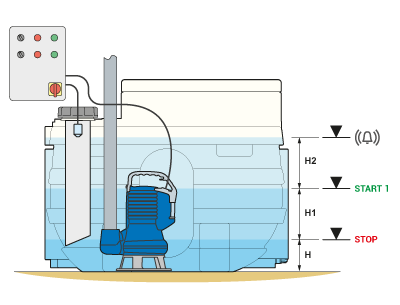

Installation of blueBOX standard and with optional float switch
For simple, labour-saving installation, use of pumps with START/STOP float switch is recommended.
An optional float switch with an overflow alarm function [for connection to an electrical control panel] can be also be used if required.
Zenit MAC 3 float switch

MAC 3

Zenit LEVEL float switch

LEVEL

Zenit domestic and civil electromechanical and electronic control panels

Electromechanical and electronic

Zenit industrial electromechanical control panels

Electromechanical

Zenit self powered alarm panel

Alarms

Zenit Commander 20 remote control system

Commander 20

Zenit Commander 50 remote control system

Commander 50
