SPECIAL ALLOY Series electric submersible pumps

The DRX, DRY and DGX models are constructed in CF8_M (AISI 316) stainless steel and have multi-channel open impeller suitable for strained liquids (DRX) or for liquids with solids (DRY), and vortex impeller for soiled wastewater (DGX).
The oil-bath motor and dual mechanical seal cooled by the motor oil guarantee continuous service even in heavy-duty conditions. They are recommended for applications with corrosive and aggressive liquids, and can therefore be used for industrial plants in the chemical and pharmaceutical sector, or with seawater.

DRB and DGB electric pumps are constructed in aluminum-bronze and have multi-channel open impeller suitable for strained wastewater (DRB) and vortex impeller for soiled wastewater (DGX). The oil-bath motor and dual mechanical seal cooled by the motor oil guarantee continuous service even in heavy-duty conditions.
They are recommended for applications with seawater or brine, in the fish processing and livestock farming sectors.

Range

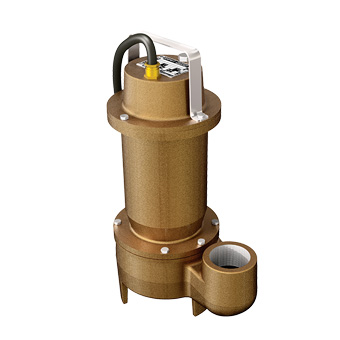

Zenit Bronze Special Alloy Series DGB electric submersible pump

DGB

DG [DRAGA]

  • Vortex impeller in aluminum-bronze
  • Large free passage

  • Soiled brines and aggressive liquids
  • Chemical, fish processing and shipping industries
Zenit Bronze Special Alloy Series DGB electric submersible pump impeller

Product range characteristics

  • Power supply
    220/240V ~1 - 380/400 V ~3
  • Frequency
    50 Hz
  • Power
    0.37 ÷ 1.5 kW
  • Poles
    2
  • Vertical discharge
    GAS 2"
  • Horizontal discharge
    -
  • Free passage
    max 38 mm
  • Max flow rate
    10.6 l/s
  • Max head
    15.0 m

Installations

Free installation of DGB Special Alloy Series
FREE installation
Permanent installation of DGB Special Alloy Series
PERMANENT installation

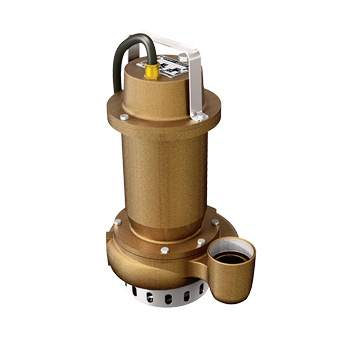

Zenit Bronze Special Alloy Series DRB electric submersible pump

DRB

DR [DRENO]

  • Multichannel open impeller in aluminum-bronze
  • Stainless steel suction strainer

  • Strained brines and aggressive liquids
  • Chemical, fish processing and shipping industries
Zenit Bronze Special Alloy Series DRB electric submersible pump impeller

Product range characteristics

  • Power supply
    220/240V ~1 - 380/400 V ~3
  • Frequency
    50 Hz
  • Power
    0.37 ÷ 1.5 kW
  • Poles
    2
  • Vertical discharge
    GAS 1¼" - GAS 2"
  • Horizontal discharge
    -
  • Free passage
    max 15mm
  • Max flow rate
    12.5 l/s
  • Max head
    18.0 m

Installations

Free installation of DRB Special Alloy Series
FREE installation
Permanent installation of DRB Special Alloy Series
PERMANENT installation

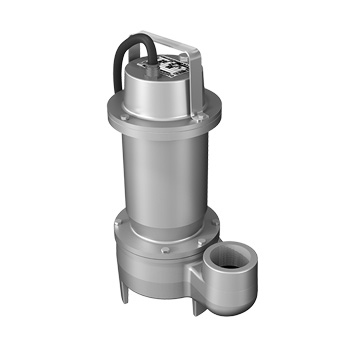

Zenit Stainless Steel Special Alloy Series DGX electric submersible pump

DGX

GR [GRINDER]

  • Stainless steel vortex impeller
  • Large free passage

  • Strongly corrosive or aggressive soiled liquids
  • Chemical, shipping and pharmaceutical industries
Zenit Stainless Steel Special Alloy Series DGX electric submersible pump impeller

Product range characteristics

  • Power supply
    220/240V ~1 - 380/400 V ~3
  • Frequency
    50 Hz
  • Power
    0.37 ÷ 1.5 kW
  • Poles
    2 / 4
  • Vertical discharge
    GAS 2"
  • Horizontal discharge
    DN65 - DN80
  • Free passage
    max 60 mm
  • Max flow rate
    18.4 l/s
  • Max head
    14.9 m

Installations

Free installation of DGX Special Alloy Series
FREE installation
Permanent installation of DGX Special Alloy Series
PERMANENT installation
installazione DGX serie LEGHE SPECIALI con dispositivo di accoppiamento da fondo DAC V
Installation with BOTTOM COUPLING DEVICE
› DAC-V

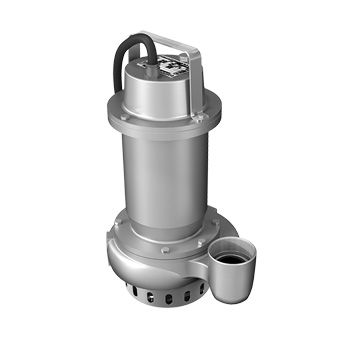

Zenit Stainless Steel Special Alloy Series DRX electric submersible pump

DRX

DR [DRENO]

  • Stainless steel multi-channel open impeller
  • Stainless steel suction strainer

  • Strongly corrosive or aggressive strained liquids
  • Chemical, shipping and pharmaceutical industries
Zenit Stainless Steel Special Alloy Series DRX electric submersible pump impeller

Product range characteristics

  • Power supply
    220/240V ~1 - 380/400 V ~3
  • Frequency
    50 Hz
  • Power
    0.37 - 1.5 kW
  • Poles
    2
  • Vertical discharge
    GAS 1¼" - GAS 2"
  • Horizontal discharge
    -
  • Free passage
    max 15mm
  • Max flow rate
    12.5 l/s
  • Max head
    17.8 m

Installations

Free installation of DRX Special Alloy Series
FREE installation
Permanent installation of DRX Special Alloy Series
PERMANENT installation

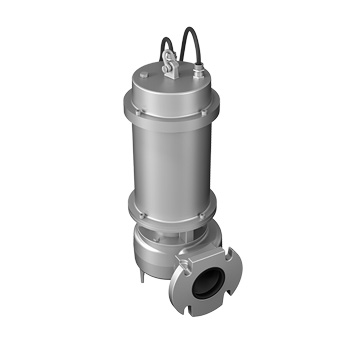

Zenit Stainless Steel Special Alloy Series DRY electric submersible pump

DRY

DR [DRENO]

  • Stainless steel multi-channel open impeller
  • Large free passage

  • Strongly corrosive or aggressive soiled liquids
  • Heavy-duty applications in chemical and industrial plants
Zenit Stainless Steel Special Alloy Series DRY electric submersible pump impeller

Product range characteristics

  • Power supply
    380/400 V ~3
  • Frequency
    50 Hz
  • Power
    2.4 ÷ 15.0 kW
  • Poles
    2 / 4
  • Vertical discharge
    -
  • Horizontal discharge
    DN65 - DN100
  • Free passage
    max 80mm
  • Max flow rate
    72.8 l/s
  • Max head
    40.2 m

Installations

Free installation of DRY Special Alloy Series
FREE installation
Permanent installation of DRY Special Alloy Series
PERMANENT installation
installazione DRY serie LEGHE SPECIALI con dispositivo di accoppiamento da fondo DAC V
Installation with BOTTOM COUPLING DEVICE
› DAC-V

Details

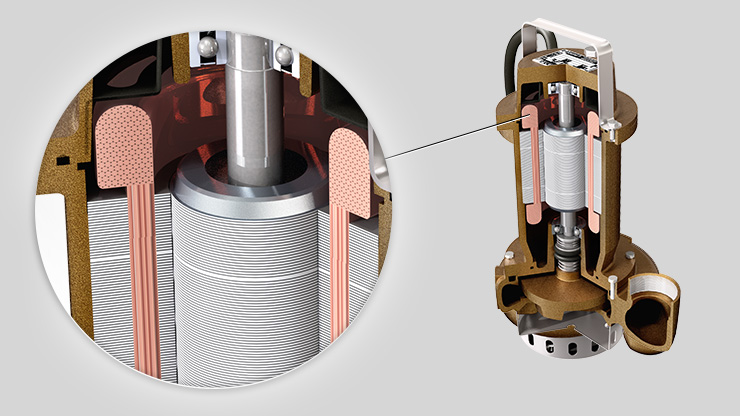

Zenit Bronze Special Alloy Series electric submersible pump motor
Oil-bath motor with thermal overload protection devices.

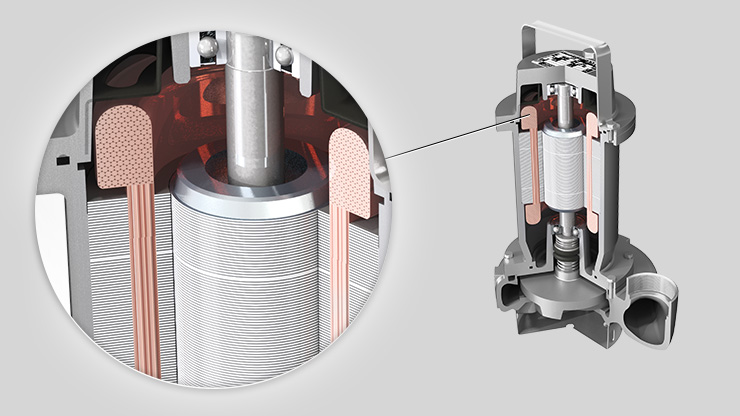

Zenit Stainless Steel Special Alloy Series electric submersible pump motor
Oil-bath motor with thermal overload protection devices.

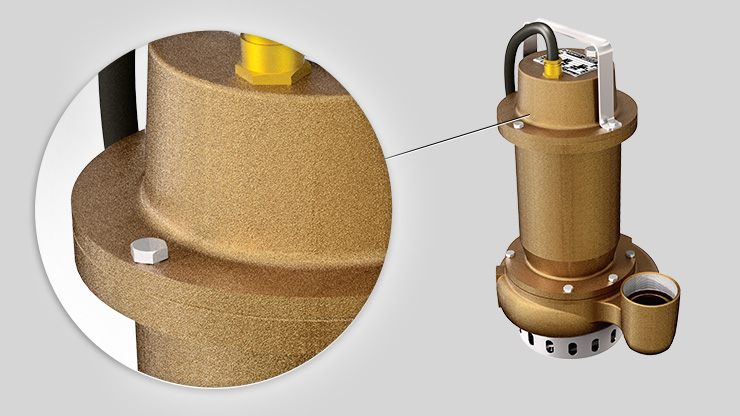

Zenit Bronze Special Alloy Series electric submersible pump case
Aluminum-bronze construction which makes the pump suitable for use with chemically aggressive liquids.
Zenit Stainless Steel Special Alloy Series electric submersible pump case
CF-8M (AISI 316) steel construction which makes the pump suitable for use in saline environments.

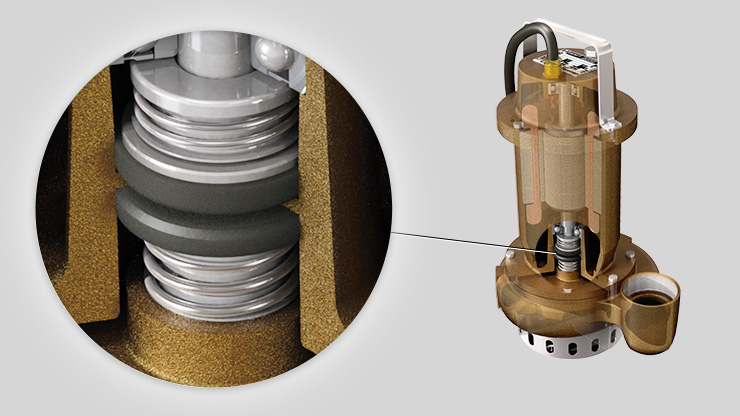

Zenit Bronze Special Alloy Series electric submersible pump seals
Two mechanical seals in silicon carbide (2SiC).

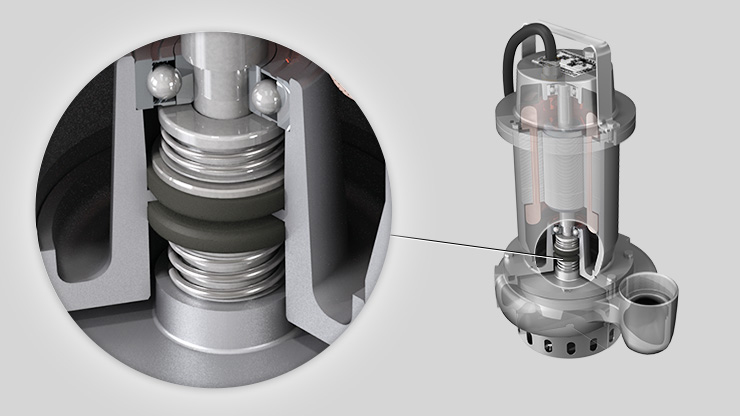

Zenit Stainless Steel Special Alloy Series electric submersible pump seals
Two mechanical seals in silicon carbide (2SiC).

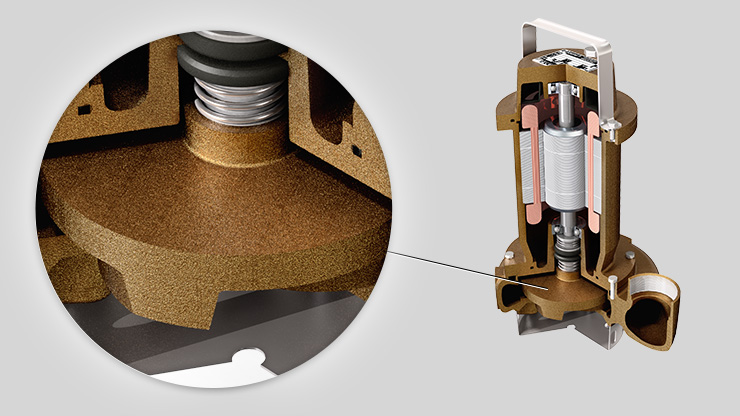

Zenit Bronze Special Alloy Series electric submersible pump impeller
Multi-channel open (DR) or vortex (DG) impeller in aluminum bronze.

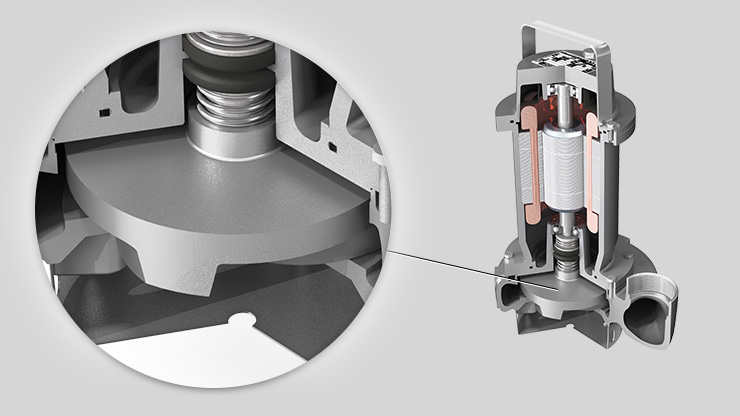

Zenit Stainless Steel Special Alloy Series electric submersible pump impeller
Multi-channel open (DR) or vortex (DG) impeller in CF-8M (AISI 316) stainless steel.

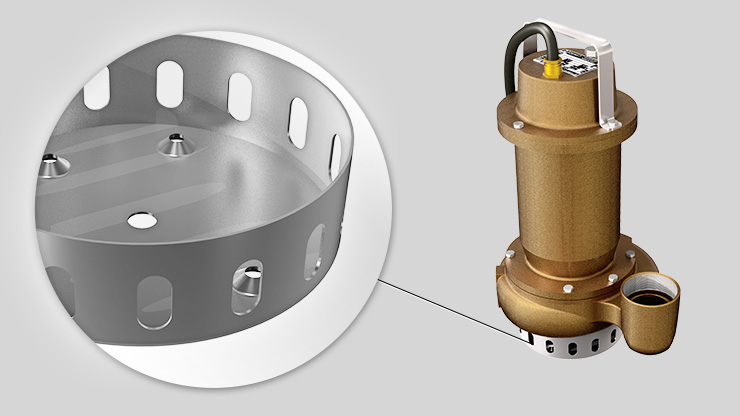

Zenit Bronze Special Alloy Series electric submersible pump strainer
Stainless steel suction strainer. [DRB]

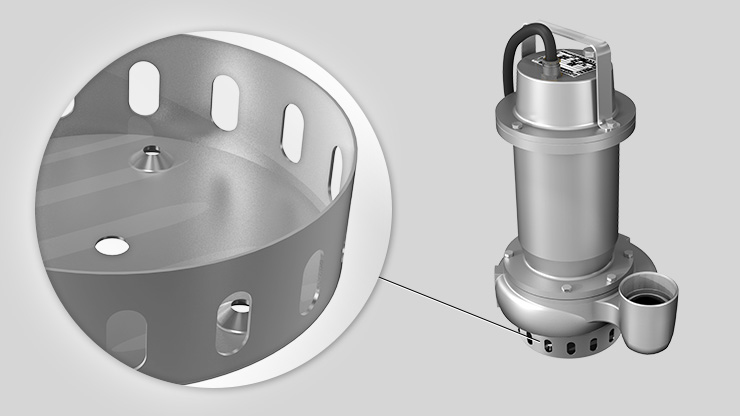

Zenit Stainless Steel Special Alloy Series electric submersible pump strainer
Stainless steel suction strainer. [DRX]

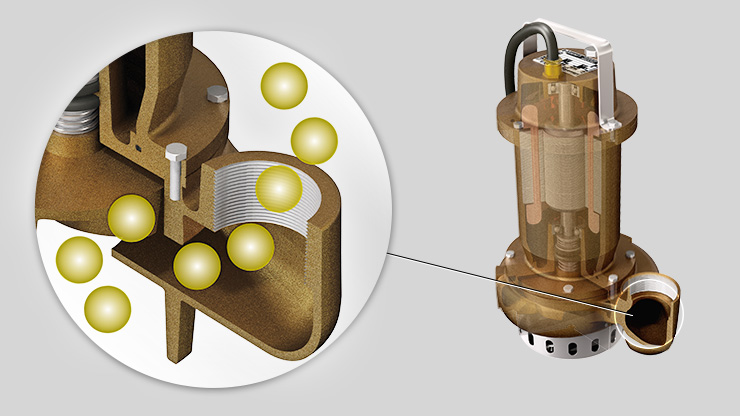

Zenit Bronze Special Alloy Series electric submersible pump free passage
Ample free passage allowing the expulsion of solids and preventing fouling of the impeller.[DGB]

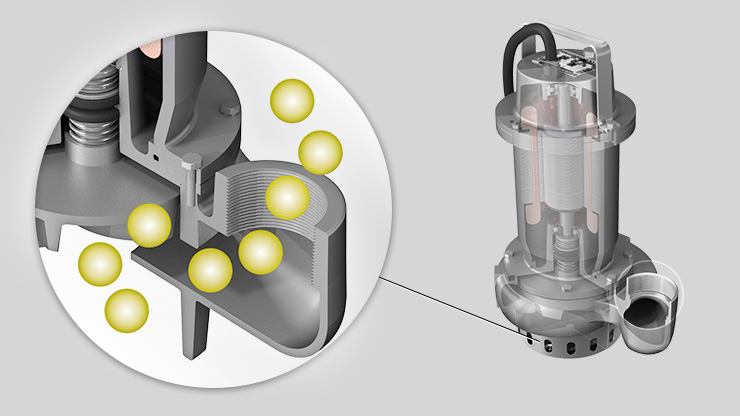

Zenit Stainless Steel Special Alloy Series electric submersible pump free passage
Ample free passage allowing the expulsion of solids and preventing fouling of the impeller. [DGX - DGY]

Want to configure your product? Explore the Zeno Navigator Suite

Specifications

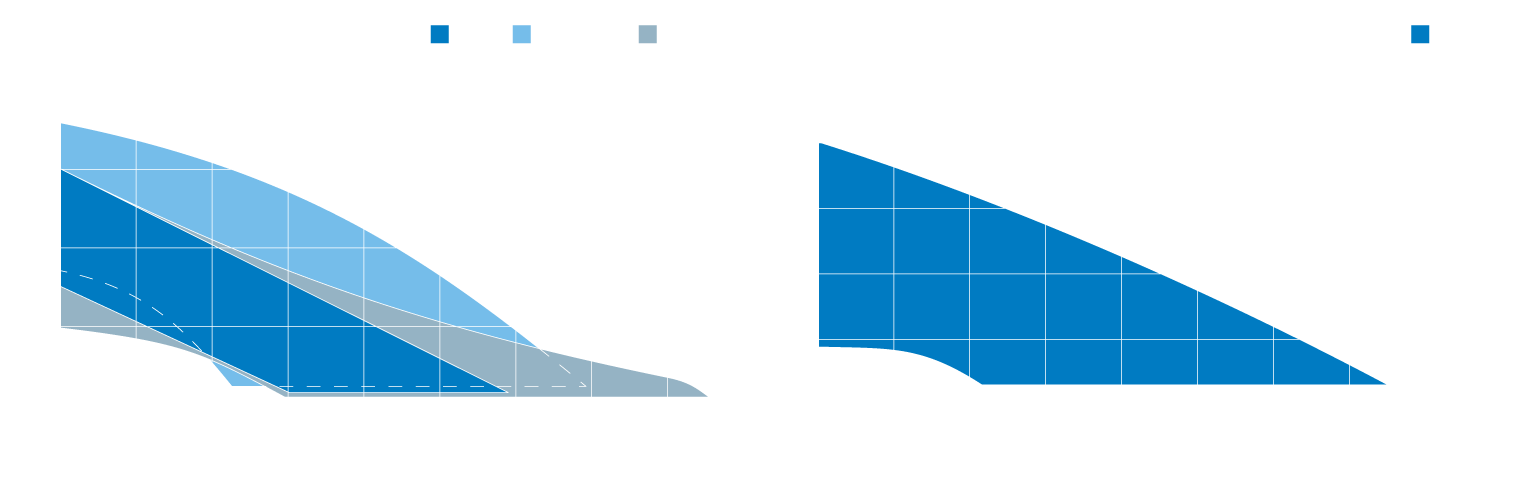

Zenit Special Alloy Series 50 Hz electric submersible pump operating ranges
Max operating temperature 40°C
pH of treated liquid 3 ÷ 14
Viscosity of treated liquid 1 mm²/s
Max immersion depth 20 m
Density of treated fluid 1 kg/dm³
Max acoustic pressure <70 dB
Max starts per hour 30
Motor casing CF-8M - AISI 316 stainless steel / Bronze-aluminium
Impeller CF-8M - AISI 316 stainless steel / Bronze-aluminium
Nuts and bolts Class A4-70 stainless steel
Standard gaskets VITON [DGX • DRX • DRY] / NBR [DGB • DRB]
Drive shaft AISI 316 stainless steel
Zenit DAC R couplers

DAC-R

Zenit DAC X couplers

DAC-X

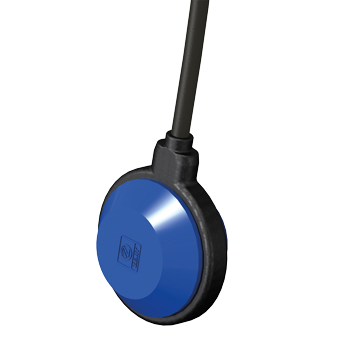

Zenit MAC 3 float switch

MAC 3

Zenit LEVEL float switch

LEVEL

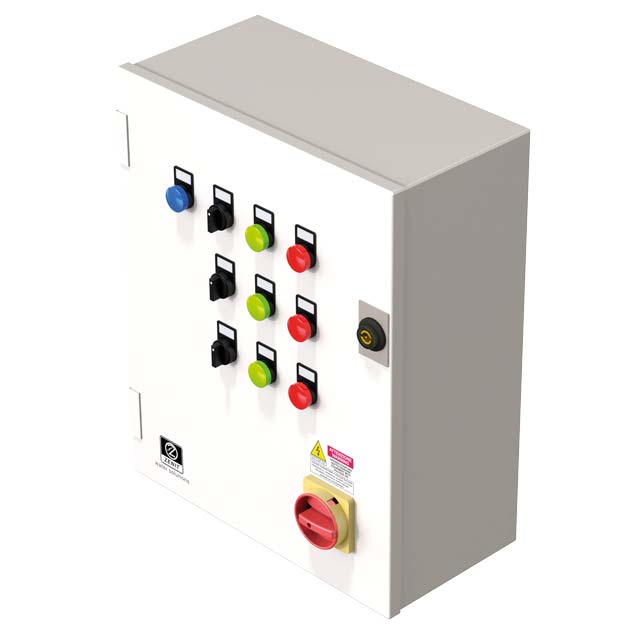

Zenit domestic and civil electromechanical and electronic control panels

Electromechanical and electronic

Zenit industrial electromechanical control panels

Electromechanical

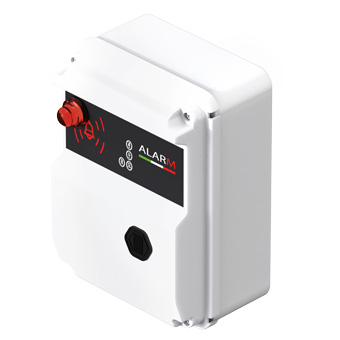

Zenit self powered alarm panel
