sphereBOX lifting stations

The sphereBOX lifting station incorporates various modular components allowing a custom composition which adapts to the needs of users.
As well as the different tank capacities, it is also possible to choose the type of internal installation, the most suitable riser and the type of cover (walk-over or drive-over version). Use with bluePRO or Grey pumps with 2” discharge recommended. Can be used for collecting and disposing of heavily soiled wastewater of civil origin, sewage and industrial wastewater.

Range

Zenit sphereBOX 600 litre lifting stations

sphereBOX 600

LIFTING STATIONS

  • Capacity from 600 litres

  • Civil systems
  • Medium-sized residential installations

Product range characteristics

  • Capacity [l]
    600
  • Tank material
    PE
  • Installation
    Underground
  • Number of pumps
    1
  • Recommended pump
    bluePRO series - Grey series
  • Discharge
    1 ¼" - 2"
  • Weight [kg]
    27

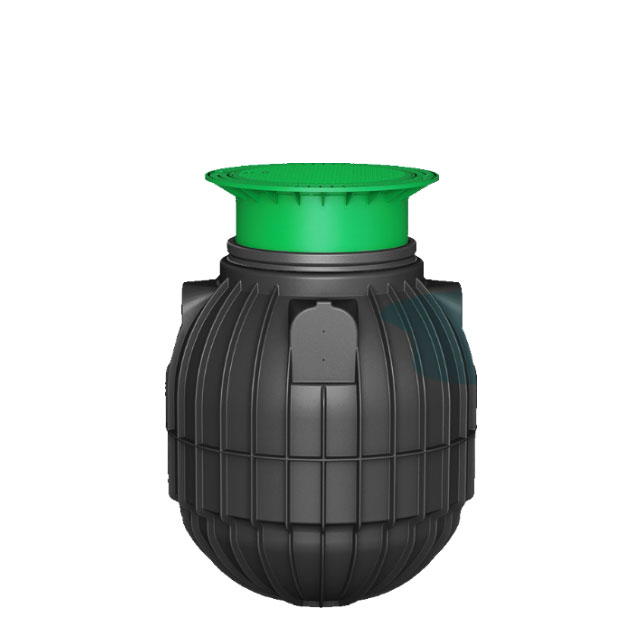

Zenit sphereBOX 900 litre lifting stations

sphereBOX 900

LIFTING STATIONS

  • Capacity from 900 litres

  • Civil systems
  • Medium-sized residential installations

Product range characteristics

  • Capacity [l]
    900
  • Tank material
    PE
  • Installation
    Underground
  • Number of pumps
    1
  • Recommended pump
    bluePRO series - Grey series
  • Discharge
    1 ¼" - 2"
  • Weight [kg]
    47

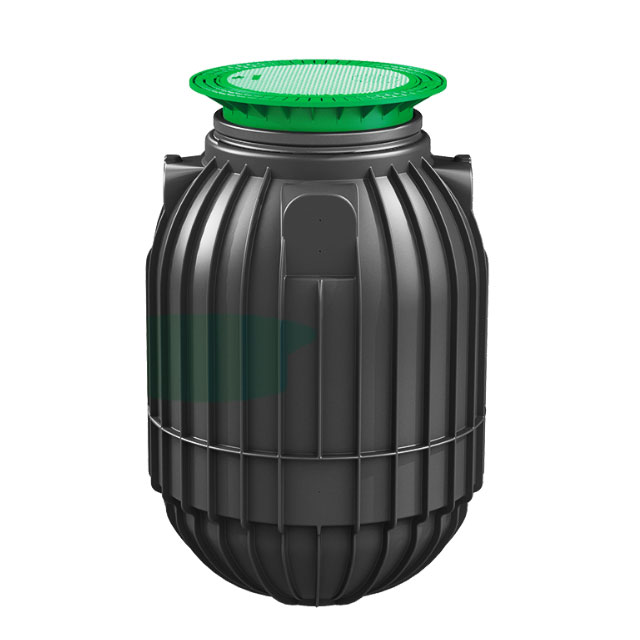

Zenit sphereBOX 1200 litre lifting stations

sphereBOX 1200

LIFTING STATIONS

  • Capacity from 1200 litres

  • Civil systems
  • Medium-sized residential installations

Product range characteristics

  • Capacity [l]
    1200
  • Tank material
    PE
  • Installation
    Underground
  • Number of pumps
    1
  • Recommended pump
    bluePRO series - Grey series
  • Discharge
    1 ¼" - 2"
  • Weight [kg]
    58

Details

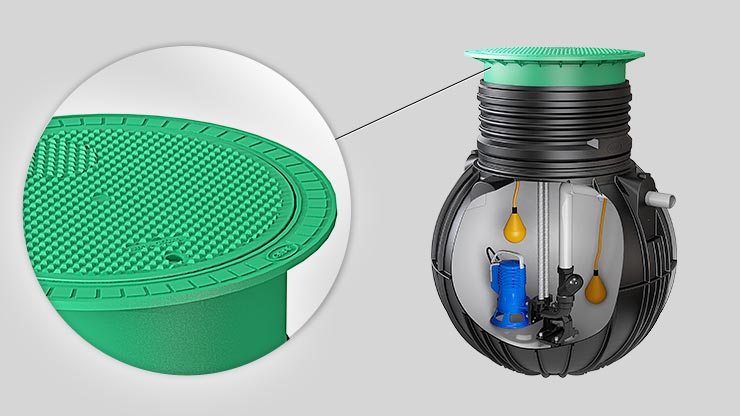

Zenit sphereBOX lifting stations walk drive over cover

Tough cover, hermetically sealed with safety closure and inspection window.
Available in walk-over or drive-over version.
Height can be adjusted to suit any type of installation.

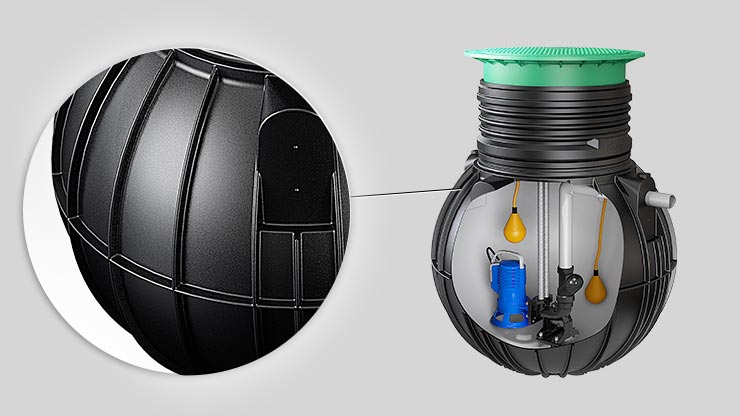

Zenit sphereBOX lifting stations structure

Tough PE construction with reinforcement ribs guaranteeing durability and effective anchoring to the ground.

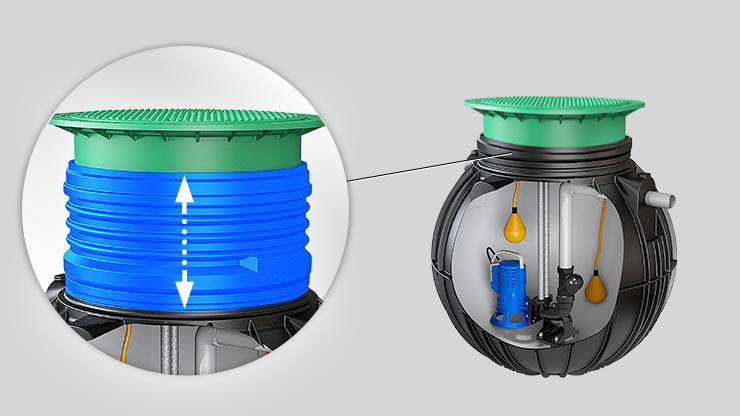

Zenit sphereBOX lifting stations risers

Two different riser types can be used, simplifying instal-lation even in existing systems.

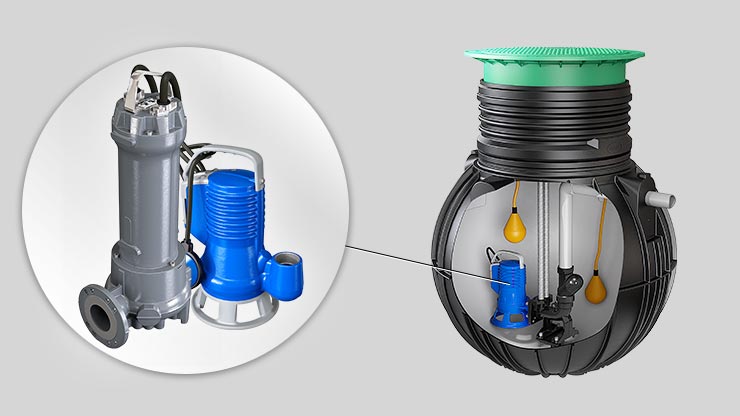

Zenit sphereBOX lifting stations pumps

The sphereBOX lifting station can be equipped with pumps with 2” discharge outlets. Zenit recommends bluePRO and Grey series pumps with vortex impeller (DG bluePRO, DGG) or with grinding system (GR bluePRO, GRG).

Want to configure your product? Explore the Zeno Navigator Suite

Specifications

Walk-over or drive-over cover, Ø 600 mm, compatible with all sphereBOX and vertiBOX models Adjustable height with hermetic seal. Vehicle loading version (class B) with cast iron cover.
Optional riser Ø600 mm / h 400 - 1210 mm
PVC hydraulic accessories: Ball check valve, Gate valve, Connecting pipe.
(Accessories may vary depending on configuration)
Zenit sphereBOX lifting stations installations

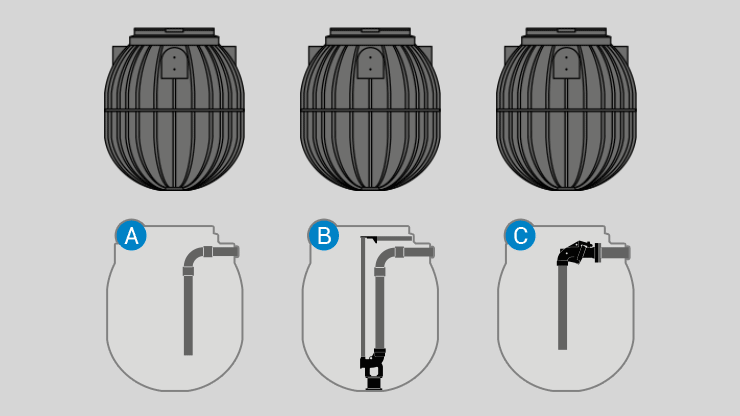

(A) Fixed with ball valve, gate valve, and 1¼" PVC connecting pipe for 1 pump;
(B) With vertical discharge bottom coupler, ball valve and 2" PVC connecting pipe for 1 pump;
(C) With DAC E external coupler, ball valve and 2" PVC connecting pipe for 1 pump (2 pumps only for sphere BOX 1200 model)

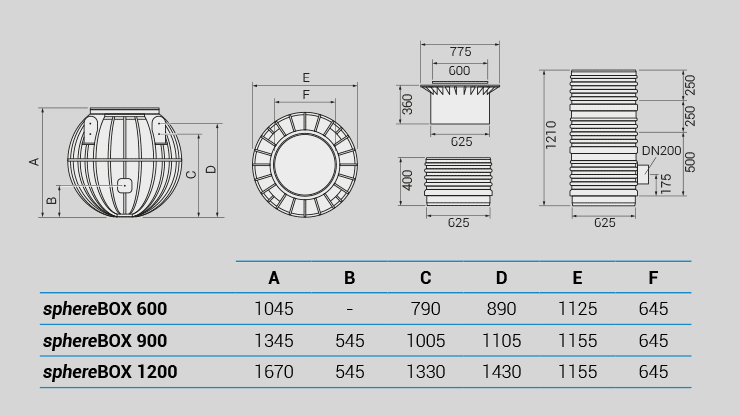

Zenit sphereBOX lifting stations dimensions
Zenit SRP knife gate valve

SRP

Zenit VAP 32 50 ball check valve

VAP 32÷50

zenit standard electromechanical control panels

Standard electromechanical
