O Series electric submersible pumps

The main feature of the O series is the oil bath motor. Together with its robust cast iron structure, it makes this model particularly reliable even in very tough operating conditions.

Simple and rational construction allows easy access for maintenance. As a result, even after its market launch in 1977, the O series continues to meet the requirements of the most demanding customers.

This serie includes models with vortex impeller (DGO) which is recommended for use in soiled liquids and with multi-channel impeller (DRO) for lifting clean or slightly soiled water.
Each model undergoes pressurised test to ensure that the motor compartment is airtight and the mechanical seals are fitted correctly, to guarantee excellent reliability.

Range

Zenit O Series DGO electric submersible pump

DGO

DG [DRAGA]

  • Cast iron vortex impeller
  • Full free passage

  • Sewage
  • Soiled wastewaters with solids
  • Lifting stations in small civil and residential plants
Zenit O Series DG electric submersible pump impeller

Product range characteristics

  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    50 Hz
  • Power
    0.37 ÷ 1.5 kW
  • Poles
    2 /4
  • Vertical discharge
    GAS 1½" ÷ GAS 2½"
  • Horizontal discharge
    GAS 2" DN50 - 65 - 80
  • Free passage
    max 80mm
  • Max flow rate
    16.4 l/s
  • Max head
    17.5 m
  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    60 Hz
  • Power
    0.37 ÷ 1.5 kW
  • Poles
    2 /4
  • Vertical discharge
    GAS 2"
  • Horizontal discharge
    GAS 2" DN50 - 65
  • Free passage
    max 65mm
  • Max flow rate
    16.4 l/s
  • Max head
    17.5 m

Installations

Free installation of O Series DGO
FREE installation
Permanent installation of O Series DGO
PERMANENT installation
Installation of O Series DGO with DAC E external coupler
Installation with EXTERNAL COUPLER
› DAC-E
Installation of O Series DGO with DAC V bottom coupler
Installation with BOTTOM COUPLER
› DAC-V
Installation of O Series DGO with DAC H bottom coupler
Installation with BOTTOM COUPLER
› DAC-H
Zenit O Series DRO electric submersible pump

DRO

DR [DRENO]

  • Cast iron multi-channel open impeller
  • Stainless steel suction strainer

  • Clear or slightly soiled wastewaters
  • Strained, seepage and underground pump-out waters
  • Irrigation and pumping from wells and reservoirs
Zenit O Series DR electric submersible pump impeller

Product range characteristics

  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    50 Hz
  • Power
    0.37 ÷ 1.5 kW
  • Poles
    2
  • Vertical discharge
    GAS 1¼" - GAS 2"
  • Horizontal discharge
    GAS 2" DN50
  • Free passage
    max 15mm
  • Max flow rate
    13.3 l/s
  • Max head
    18.7 m
  • Power supply
    220/240 V ~1 - 380/400 V ~3
  • Frequency
    60 Hz
  • Power
    0.37 ÷ 1.5 kW
  • Poles
    2
  • Vertical discharge
    GAS 1¼" - GAS 2"
  • Horizontal discharge
    -
  • Free passage
    max 15mm
  • Max flow rate
    13.3 l/s
  • Max head
    18.7 m

Installations

Permanent installation of O Series DRO
FREE installation
Permanent installation of O Series DRO
PERMANENT installation
Installation of O Series DRO with DAC E external coupler
Installation with EXTERNAL COUPLER
› DAC-E
Installation of O Series DRO with DAC V bottom coupler
Installation with BOTTOM COUPLER
› DAC-V
Installation of O Series DRO with DAC H bottom coupler
Installation with BOTTOM COUPLER
› DAC-H

Details

Zenit O Series electric submersible pump handle

Stainless steel lifting and carrying handle.

Zenit O Series electric submersible pump cable gland

Stainless steel cable gland system which guarantees airtight seal and allows easy replacement of cable or float switch.

Zenit O Series electric submersible pump case

Robust cast iron construction.

Zenit O Series electric submersible pump strainer

Stainless steel suction strainer. [DRO]

Zenit O Series electric submersible pump dual protection

The motor is protected by a bimetallic thermal protection in the stator and a overload protectioncurrent overload device (manual reset) installed in an external box. It cuts off the power supply in the event of current overload due to fouled impeller.

Zenit O Series electric submersible pump motor

Oil-bath motor for effective cooling to allow even heavy-duty workloads.

Zenit O Series electric submersible pump mechanical seals

One mechanical seal in silicon carbide (SiC) and one in alumina graphite (AL), cooled by motor oil.

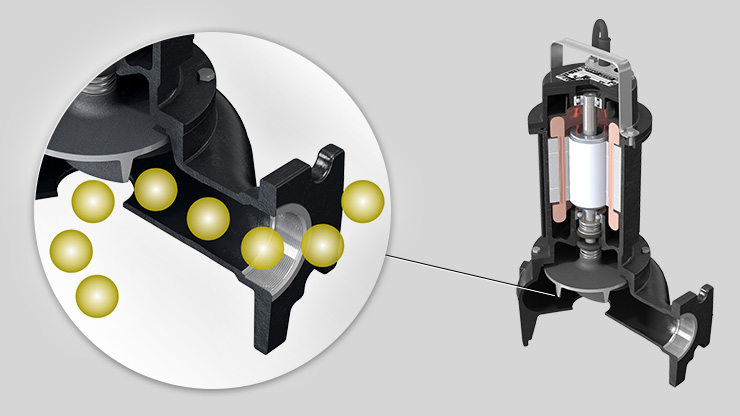

Zenit O Series electric submersible pump free passage

Ample free passage allowing the expulsion of solids and preventing fouling of the impeller. [DGO]

Zenit O Series electric submersible pump anti clogging system

Hydraulics with Anti Clogging System (ACS)which ensures the removal of small suspended solids and prevents fouling of the impeller.[DRO]

Want to configure your product? Explore the Zeno Navigator Suite

Specifications

Zenit O Series 50 Hz electric submersible pump operating ranges

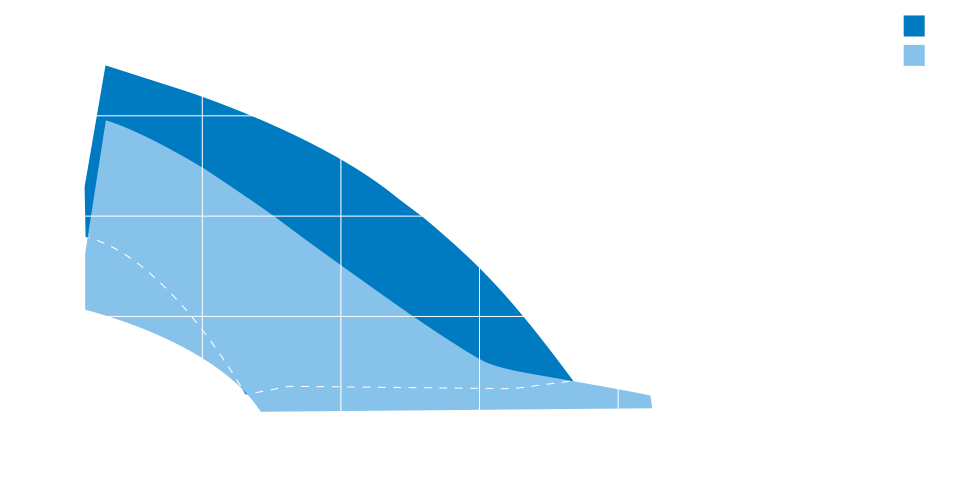

Zenit O Series 60 Hz electric submersible pump operating ranges
Max operating temperature 40°C
pH of treated liquid 6 ÷ 14
Viscosity of treated liquid 1 mm²/s
Max immersion depth 20 m
Density of treated fluid 1 kg/dm³
Max acoustic pressure <70 dB
Max starts per hour 30
Motor casing Cast iron EN-GJL-250
Impeller Cast iron EN-GJL-250
Nuts and bolts Stainless steel - Class A2-70
Standard gaskets NBR rubber
Drive shaft AISI 431 stainless steel
Painting Bicomponent epoxy paint with high resistance to corrosion
Zenit DAC E couplers

DAC-E

Zenit DAC V 32 50 couplers

DAC-V 32÷50

Zenit DAC V 65 350 couplers

DAC-V 65÷350

Zenit DAC H couplers

DAC-H

Zenit SRP knife gate valve

SRP

Zenit VAP 32 50 ball check valve

VAP 32÷50

Zenit VAP 65 300 ball check valve

VAP 65÷300

Zenit KCR Gas 2 bend unions

KCR GAS 2"

Zenit KCR Uni bend unions

KCR UNI

Zenit KAF sliding flange

KAF

Zenit KFL flange

KFL

Zenit KAT chain

KAT

Zenit MAC 3 float switch

MAC 3

Zenit LEVEL float switch

LEVEL

zenit standard electromechanical control panels

Standard electromechanical

zenit full service electromechanical control panels

Full service electromechanical

Zenit self powered alarm panel

Alarms
